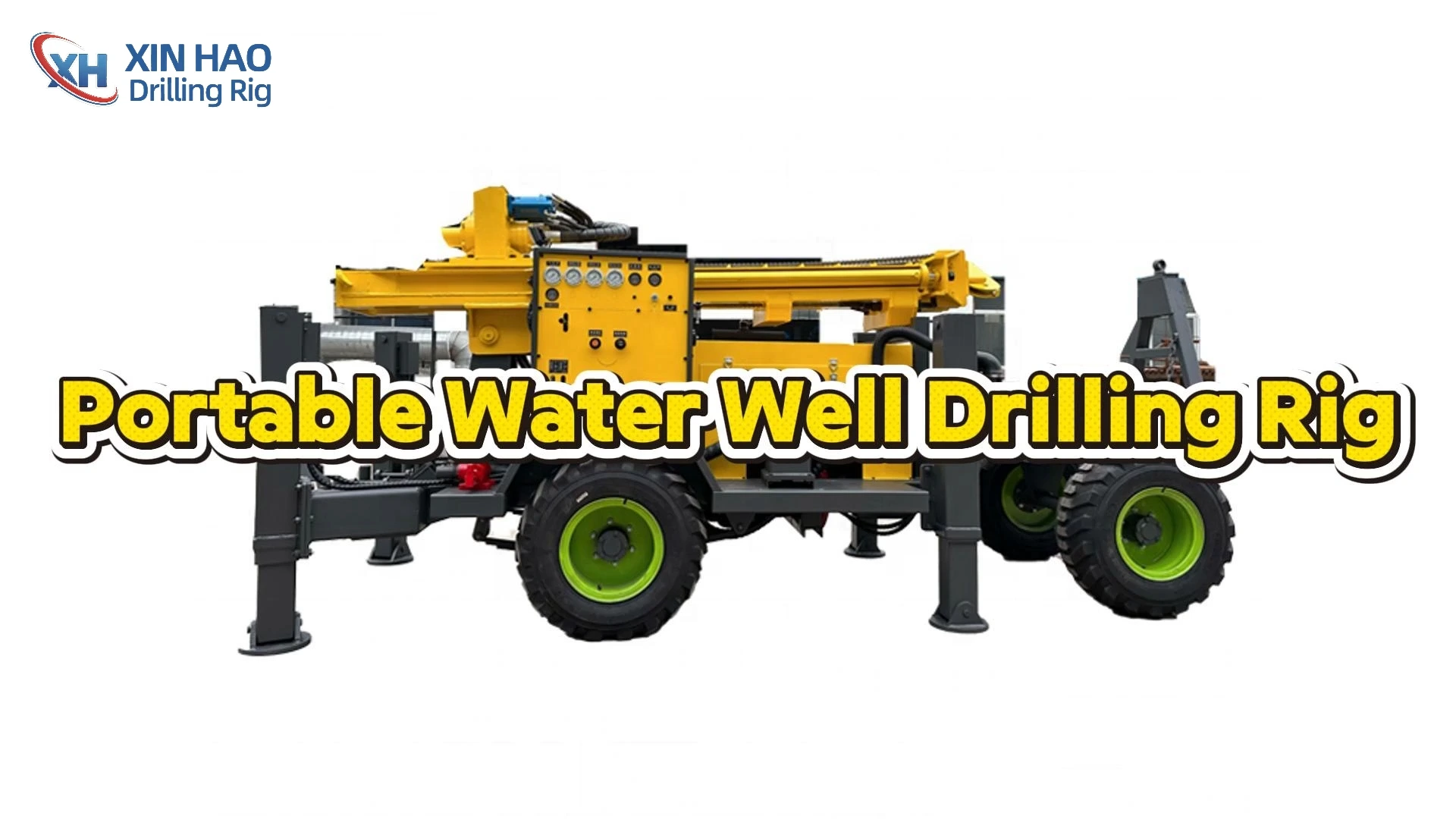

Towable Water Well Drill Rig For Deep Well Exploration
Towable water well drilling rig, deepwater drilling trailer water well drilling rig, trailer hydraulic water well drilling rig, mobile water well drilling rig
5.0
Product Series:
DW180-DW400
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
This trailer-mounted water well drilling rig is particularly suitable for deepwater wells, geothermal wells, irrigation wells, and other water conservancy projects in mountainous areas and rocky formations.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
This portable trailer-mounted water well drilling rig series features a trailer-style design that offers excellent mobility and enables rapid transport via road to various work sites. It integrates top-drive full hydraulic technology, a high-efficiency cuttings removal system, and a highly stable drilling mast, allowing it to easily handle diverse complex geological conditions—from soft soil to hard rock formations.
As a comprehensive solution covering drilling depths from 180 to 400 meters, it provides users the flexibility to select or customize models according to specific depth and geological requirements. Whether for water well drilling, agricultural irrigation, or exploration projects, this rig is an ideal choice for achieving highly efficient and cost-effective drilling operations.
Our advantage
Deep Drilling, Wide Application Range
Seven models of trailer-mounted water well drilling rigs are available (covering depths from 180 to 400 meters) to meet the budget and depth requirements of your project. Core performance increases with each model, with swing torque up to 11,200 N/M and lifting force up to 25 tons, specifically designed for deep holes and hard rock formations. The equipment utilizes a 58-92 kW diesel engine, a multi-speed transmission, and a hydraulic automatic feed system, achieving efficient power matching and simplified operation, ensuring powerful drilling while maintaining energy efficiency.
Designed for Efficient Mobility and Stable Operation
This series of water well drilling rigs features a sturdy trailer-type chassis for easy towing and rapid transfer to various construction sites. Upon arrival at the site, its hydraulic outriggers quickly level the machine, providing stable support for high-intensity drilling. Combined with top drive full hydraulic technology, a complete hydraulic oil cooling system, and a 3.6-meter or 6.6-meter rig travel, the rig makes connecting and disconnecting drill pipes more convenient and faster, significantly reducing auxiliary time and improving overall operational efficiency.
Versatile Technology and Customizability
It is suitable for a variety of applications, including water well drilling, mineral exploration, and construction engineering surveys, and can handle geological formations from Grades 2 to 9 (including gravel and hard rock). Equipped with an integrated control system and remote control, the equipment is intuitive and easy to operate. To accommodate complex formations, it supports the flexible use of a mud pump for positive circulation and deslagging, or switching to an air compressor and down-the-hole hammer for hard rock impact drilling. Metallurgical or PDC drill bits can be selected as needed. The drill rig also includes interfaces for a mud pump and a welder, enabling power switching and function expansion, enabling multi-purpose use, significantly improving equipment utilization and project economics.
Technical parameter
|
Trailer model |
DW180 |
DW200 |
DW260 |
DW260S |
DW300 |
DW350 |
DW400 |
|
Drilling diameter(mm) |
140-254 |
140-305 |
140-305 |
140-305 |
140-325 |
140-325 |
140-325 |
|
Driling depth(m) |
180 |
200 |
260 |
260 |
300 |
350 |
400 |
|
Dill frame stroke(m) |
3.6 |
3.6 |
3.6 |
6.6 |
3.6 |
6.6 |
6.6 |
|
Drill pipe diameter(mm) |
76-89 |
76-89 |
76-89 |
76-89 |
76-89-102 |
89-102 |
89-102-114 |
|
Working pressure(Mpa) |
1.7-3.0 |
1.7-3.0 |
1.7-3.0 |
1.7-3.0 |
1.7-3.0 |
1.7-3.3 |
1.7-3.5 |
|
Air consumption(m³/min) |
17-31 |
17-31 |
17-31 |
17-31 |
17-35 |
17-35 |
17-35 |
|
Slewing speed(pm) |
45-70 |
45-70 |
45-70 |
45-70 |
45-70 |
45-115 |
45-130 |
|
Rotation torque(N/M) |
3500-4800 |
3500-4800 |
5200-5700 |
5200-5700 |
5500-8100 |
6900-9700 |
7200-11200 |
|
Riglifing force(T) |
12 |
12 |
15 |
15 |
17 |
24 |
25 |
|
Diesel engine power(Kw) |
58 |
65 |
76 |
76 |
85 |
91 |
92 |
|
Walking speed(Km/h) |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
|
Upil angle(Max) |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
|
size(M) |
4.71.8*2.3 |
4.7*1.8*2.3 |
4.7*1.8*2.3 |
5.6×1.9×2.45 |
5.6×1.9×2.45 |
5.6×1.9×2.45 |
5.6×1.9×2.45 |
|
weight(T) |
3 |
3.2 |
3.5 |
4.5 |
5 |
5.8 |
6.2 |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
