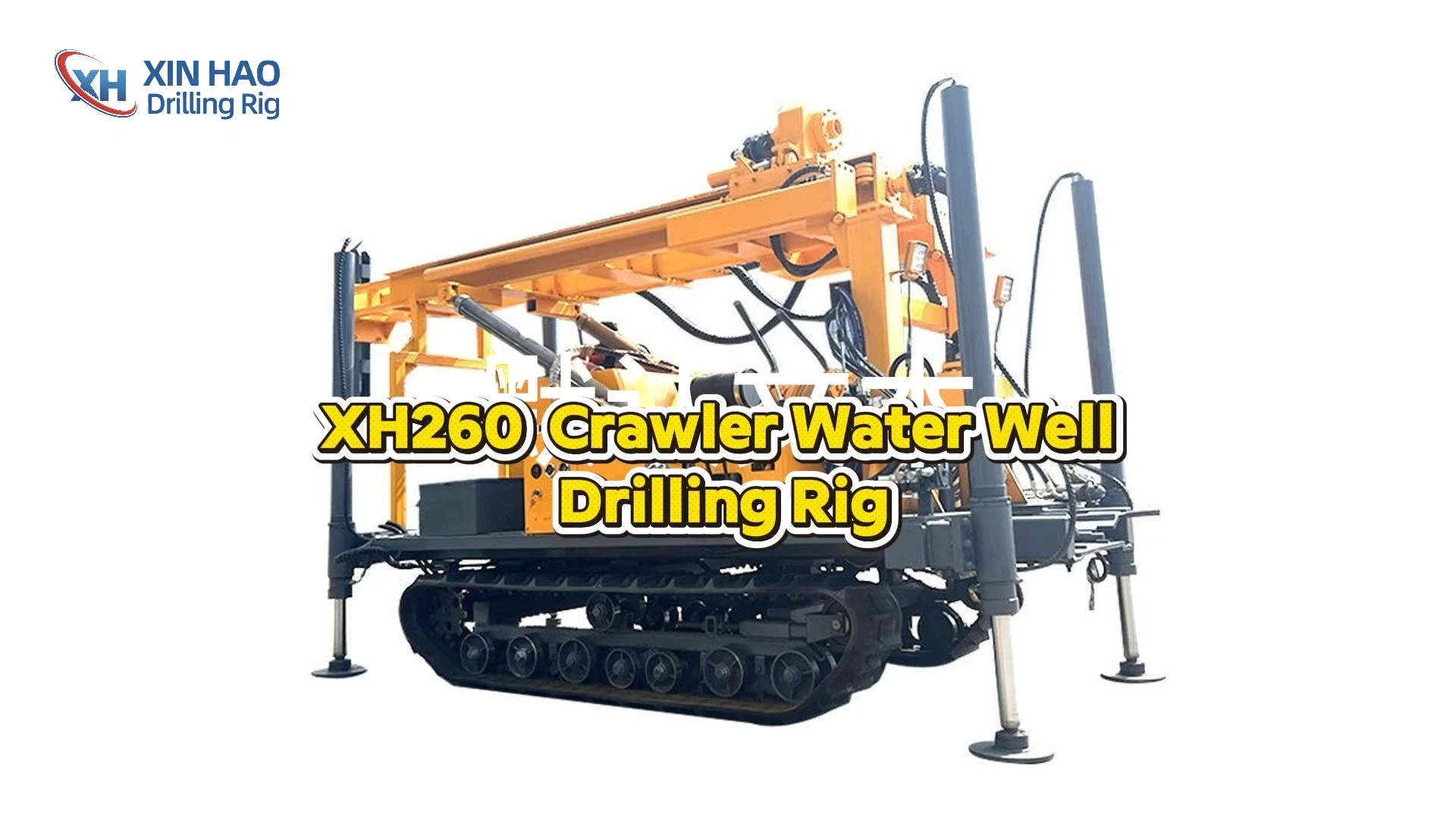

XH260 Crawler Water Well Drill For Mineral Exploration To 260m
260m deep hole, prospecting coring drill rig, multifunctional water well drilling rig, surface water well drilling rig, engineering drilling rig
5.0
Product Series:
XH260
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
Deep water Wells, geothermal Wells, irrigation Wells, etc. are especially suitable for water conservancy projects in mountainous areas and rocky strata
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
Are you searching for a reliable and efficient solution for water well projects in hard rock and complex formations? Conventional drilling rigs often struggle with variable ground conditions, leading to delays and cost overruns.
The XH260 Crawler Water Well Drilling Rig is a powerful machine engineered for demanding applications, providing strong assurance for your project's success. It is ideally suited for water extraction projects in mountainous areas and rocky strata. With a powerful rotary torque of 5200-5700 N·m and a drilling depth capacity of 260 meters, the XH260 easily handles challenges from soft soil to hard rock, making your drilling operations faster, deeper, and more stable.
Drilling Diameter: 140-305mm | Drill Pipe Diameter: 76-89mm | Rotary Speed: 45-70 rpm | Travel Speed: 2.5 km/h
Our advantage
Powerful Torque & Performance
Power is the core of water well drilling. The XH260, equipped with a high-power 76 kW diesel engine, provides a stable and reliable power source. Crucially, its 5700 N·m rotary torque – combined with an excellent hydraulic system and alloy drill bits – enables the drill tool to consistently deliver massive torque when encountering hard rock formations, effectively breaking rock and avoiding issues like stuck rods or power deficiency. Whether performing rotary percussion drilling or DTH hammer operations, it maintains high efficiency in hard rock construction, directly shortening your project timeline.
260-Meter Depth: Meeting Deep Water Source Needs
Professional-Grade Drilling Depth for Accessing Deep Aquifers As shallow water resources become increasingly scarce, securing a reliable supply often requires venturing into deeper aquifers. With a drilling capacity of 260 meters, the XH260 can access these deeper water-bearing layers, significantly expanding the potential and applicability of your water well projects. Whether for agricultural irrigation, domestic water supply, or other deep well applications, this crawler water well drilling rig provides the depth assurance needed to locate and utilize abundant water sources.
Enhanced Mobility & Rapid Site Relocation
Mobility is critical on mountainous or rugged work sites. The XH260 utilizes a crawler chassis with strong climbing ability and excellent site accessibility. Its compact structure and total weight of approximately 5 tons make transportation and on-site movement more convenient and flexible, reducing the complex transfer costs associated with larger equipment. You can quickly deploy it to where it's needed most, significantly boosting overall operational efficiency once drilling commences.
Water well drilling rig series accessories
● Mud pump
● Air compressor
● Drill pipe
● Drilling bit
● Cone bit
● Latent hole impactor
● Air hose
Technical parameter
|
Drilling Diameter (mm) |
140-305 |
Rotary Torque (N・m) |
5200-5700 |
|
Drilling Depth (m) |
260 |
Lifting Power (t) |
15 |
|
Drill Mast Stroke (m) |
3.6 |
Diesel Engine Power (KW) |
76 |
|
Drill Pipe Diameter (mm) |
76-89 |
Travel Speed (km/h) |
2.5 |
|
Working Pressure (MPa) |
1.7-3.0 |
Uphill Angle (Max) |
30 |
|
Air Consumption (m³/min) |
17-31 |
Size (m) |
3.7*1.7*2.3 |
|
Rotary Speed (rpm) |
45-70 |
Weight (T) |
5 |
