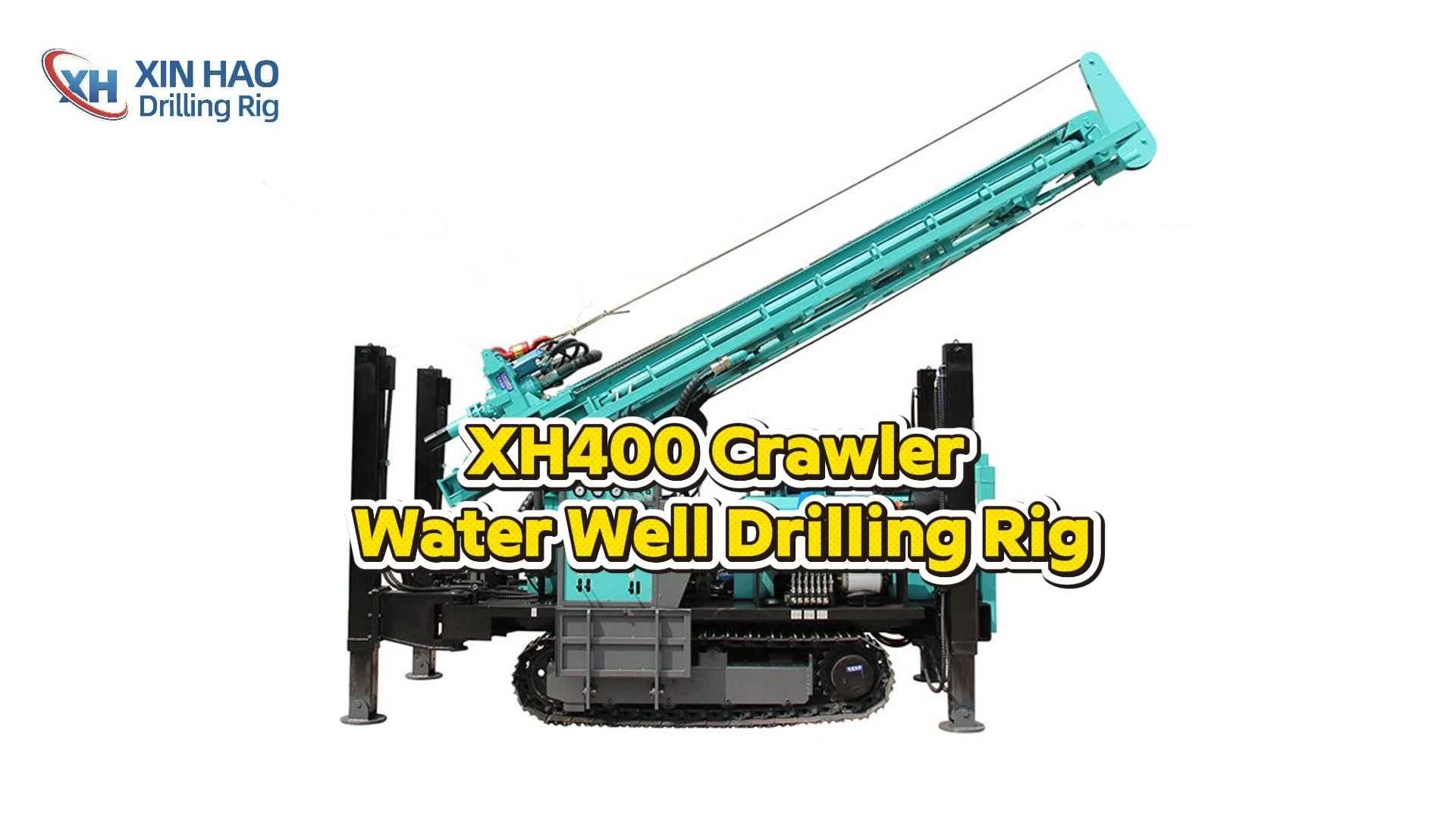

XH400 Crawler drilling rig: 400m deep water well and hard rock drilling
As the top model in the series, its 400-meter drilling capacity and 11,200 N·m of torque enable it to easily handle various complex geological challenges.
5.0
Product Series:
XH400
Brand:
XinHao
Customization:
According to customer needs
Application:
Deep water wells, geothermal wells, irrigation wells, etc., especially suitable for water conservancy projects in mountainous areas and rocky strata
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
Faced with the common challenges of hard rock formations, ultra-deep hole conditions, and difficult equipment selection in deep well projects, the XH400 Crawler-Type Hydraulic Water Well Drilling Rig provides a professional solution.
As the top model in the series, its 400-meter drilling capacity and 11,200 N·m of torque enable it to easily handle various complex geological challenges.
We understand that standard equipment may not suit every project. Therefore, Xinhau not only offers optional diesel-electric hybrid power but also supports various configurations, including generators and foam pumps, and undertakes ODM/OEM customization. Regardless of your construction conditions, we can work with you to build the most suitable drilling equipment.
Our advantage
Conquering Extreme Depths & Hard Formations
When projects involve deep aquifers or hard rock, ordinary drills often lack power, operate inefficiently, or even fail to work. The core advantage of the XH400 Crawler Water Well Drilling Rig in its powerful performance and targeted design. Its top-tier output torque of 11,200 N·m, combined with a 45-130 rpm stepless speed regulation, provides ample power for button bits to break hard rock. If you need support in equipment selection, our professional technical team can provide detailed answers and targeted solutions.
Highly Integrated & User-Friendly On-Site Solution
On-site efficiency depends not only on drilling speed but also on equipment mobility and operational ease. The XH400 Crawler Water Well Drilling Rig is designed with these factors in mind. It integrates optional generators, centrifugal pumps, and foam pumps to meet different drilling process needs. The integrated control console is logically designed and easy to master, requiring less technical expertise from operators. This allows your team to start production quickly, reducing training time and operational errors.
Truly Tailored Customization & Cooperation
We offer more than just a single piece of equipment; we provide flexible cooperation models. If your project has specific power source requirements, we can offer three motor options, including a hybrid system. If standard configurations don't meet your needs, we support deep ODM/OEM customization. Everything from equipment configuration to external branding can be adjusted based on your specific working conditions and brand requirements, ensuring you receive a drilling solution that truly creates value for you.
Water well drilling rig series accessories
● Mud pump
● Air compressor
● Drill pipe
● Drilling bit
● Cone bit
● Latent hole impactor
● Air hose
Technical parameter
|
Drilling diameter（mm） |
140-235 |
Rotation torque(N.M) |
7200-11200 |
|
Drilling depth (m) |
400 |
Rig lifting force (T) |
25 |
|
Drill frame stroke (m) |
6.6 |
Diesel engine power(Kw) |
92 |
|
Drill pipe diameter (mm) |
89-102-114 |
Uphill angle (Max) |
30 |
|
Working pressure (Mpa) |
1.7-3.5 |
Size (M) |
5.2×2×2.3 |
|
Air consumption (m³/min) |
17-35 |
Weight (T) |
8 |
|
Slewing speed (rpm) |
45-70 |
Travel Speed (km/h) |
2.5 |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
