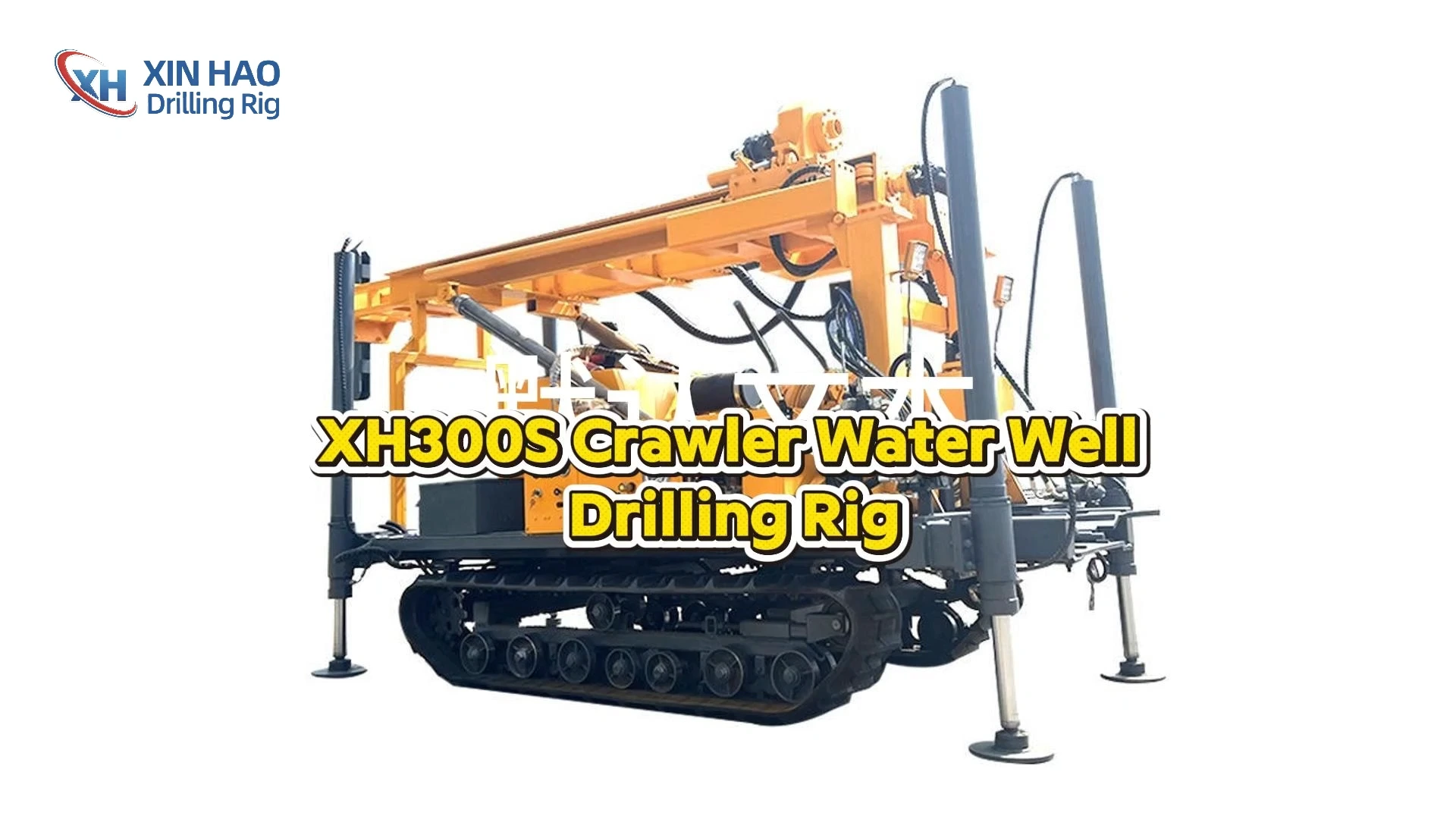

XH300S Customizable Crawler Drill For Core Sampling To 300m
For drilling projects, 300m deep hole construction, core drilling rig equipment, customizable portable drilling rigs
5.0
Product Series:
XH300S
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
Deep water Wells, geothermal Wells, irrigation Wells, etc. are especially suitable for water conservancy projects in mountainous areas and rocky strata
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
When drilling deep water wells for agricultural irrigation, industrial, or water supply projects, are you often constrained by equipment capabilities, complex terrain, and construction efficiency? The XH300S Crawler Hydraulic Water Well Drilling Rig exists specifically to solve these challenges. With a drilling capacity of 300 meters, it operates flexibly in rugged mountainous areas or confined sites. The rig supports customization of drill pipes and borehole diameters to precisely match your specific construction needs.
Whether for irrigation projects in remote areas or emergency urban water supply projects, the XH300S helps you maintain schedules and control costs with its high efficiency, stability, and low maintenance requirements.
Our advantage
Efficient Drilling for Diverse Water Source Needs
The key to successful water well drilling lies in accurately reaching the aquifer and matching local geological conditions. The XH300S offers a drilling diameter range of 140–325 mm and a maximum depth of 300 meters, enabling it to handle various geology, from loose soil layers to hard rock formations. An adjustable rotary speed of 45–70 rpm and high torque of 5500–8100 N・m ensure sustained, efficient drilling in complex strata, preventing rod sticking and efficiency loss. For teams needing significantly higher daily progress, this rig substantially shortens project timelines, directly addressing the core pain points of "slow drilling" and "inability to penetrate."
Powerful Performance for Challenging Sites
At remote or unprepared sites, inadequate power or poor mobility can severely impact progress. The XH300S, powered by an 85 kW diesel engine, delivers consistent and reliable power output. Its crawler chassis, with a 30° climbing ability and 2.5 km/h travel speed, ensures stable movement and operation in adverse terrain like mud and slopes. With a 17-ton hoisting capacity and a 6.6-meter mast stroke, the rig enables rapid drill pipe handling and downhole operations, reducing non-drilling time. These features make it particularly suitable for areas like mountains and rural locations where fixed equipment is difficult to deploy, solving the common on-site problems of "difficult access" and "insufficient power."
Customizable & Low Operational Costs
Different projects have unique requirements for drill pipe configuration, borehole diameter, and energy consumption. The XH300S supports customization of key components, including drill pipe diameter (76/89/102 mm) and working air pressure (1.7–3.0 MPa), helping users select the optimal configuration based on actual geology and budget. Measuring 5.2×1.9×2.3 meters and weighing 7 tons, the rig is more compact than comparable 300-meter models, reducing transportation and relocation costs. For small to medium-sized contractors or budget-conscious users, this design controls both acquisition and operational expenses while maintaining drilling capability, directly addressing the pain points of "high costs" and "low utilization rates."
Water well drilling rig series accessories
● Mud pump
● Air compressor
● Drill pipe
● Drilling bit
● Cone bit
● Latent hole impactor
● Air hose
Technical parameter
|
Drilling Diameter (mm) |
140-325 |
Rotary Torque (N・m) |
5500-8100 |
|
Drilling Depth (m) |
300 |
Lifting Power (t) |
17 |
|
Drill Mast Stroke (m) |
6.6 |
Diesel Engine Power (KW) |
85 |
|
Drill Pipe Diameter (mm) |
76-89-102 |
Travel Speed (km/h) |
2.5 |
|
Working Pressure (MPa) |
1.7-3.0 |
Uphill Angle (Max) |
30 |
|
Air Consumption (m³/min) |
17-35 |
Size (m) |
5.2×1.9×2.3 |
|
Rotary Speed (rpm) |
45-70 |
Weight (T) |
7 |
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
