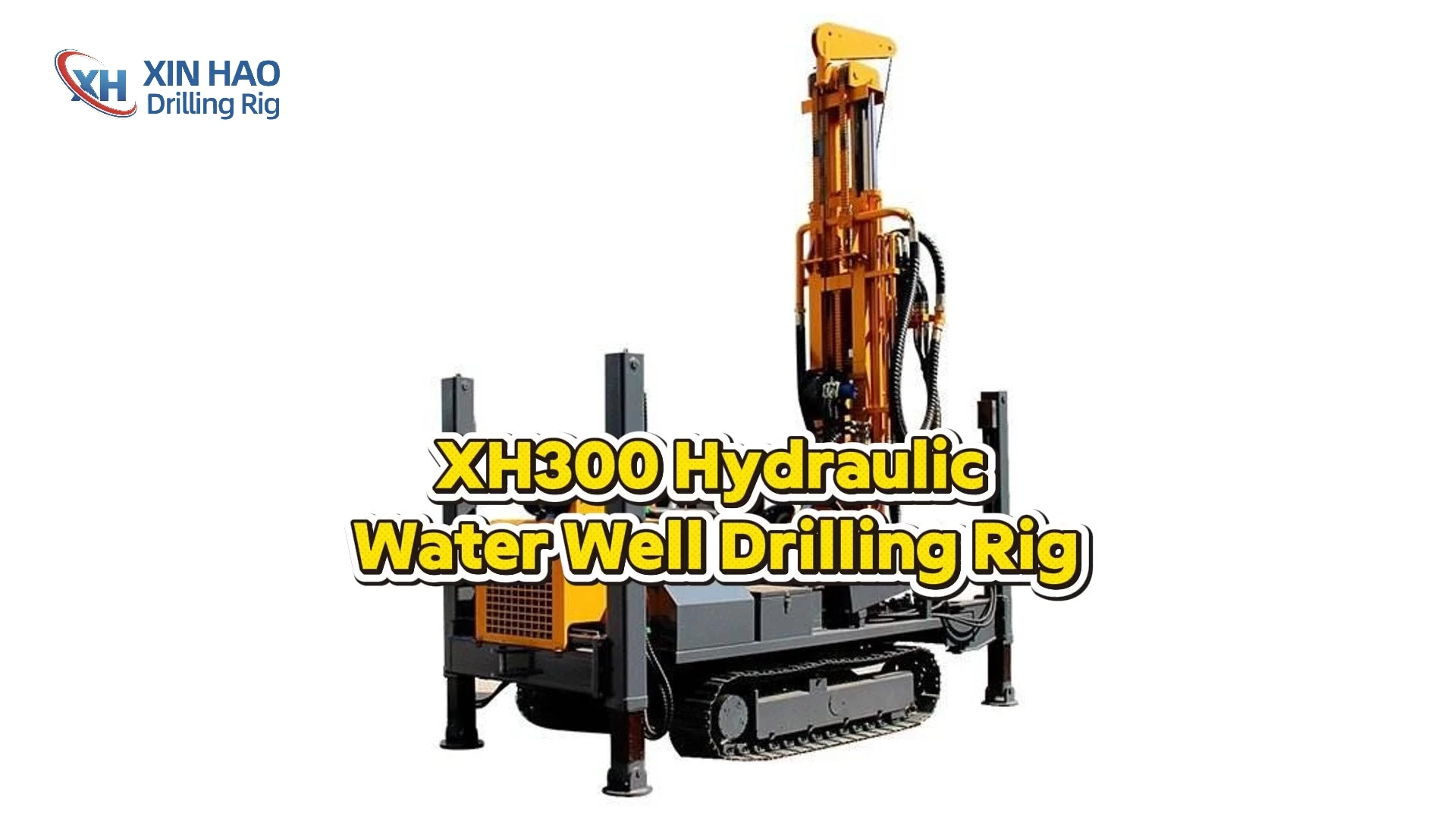

Portable Fully Hydraulic Drilling Rig 300M High Efficiency Drilling XH300
The XH300 Crawler Water Well Drilling Rig is your reliable solution for complex drilling challenges. It integrates advanced hydraulic technology, a high-torque rotary system, and highly adaptable drilling methods.
5.0
Product Series:
XH300
Brand:
XinHao
Customization:
According to customer needs
Application:
Deep water wells, geothermal wells, irrigation wells, etc., especially suitable for water conservancy projects in mountainous areas and rocky strata
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The XH300 Crawler Water Well Drilling Rig is your reliable solution for complex drilling challenges. It integrates advanced hydraulic technology, a high-torque rotary system, and highly adaptable drilling methods. It can not only complete the drilling of water wells and agricultural irrigation wells quickly but also tackle challenges posed by unstable formations such as mountainous terrain, rock layers, and pebble-cobble strata.
Through an optimized hydraulic system and flexible drill tool combinations, the XH300 significantly enhances operational adaptability and ease of use while ensuring fast hole completion, meeting diverse drilling needs. Drilling diameter: 140-325mm, Drilling depth: 300m, Drill pipe diameter: 76/89/102mm, Rotary torque: 5500-8100 N·m.
Our advantage
Core Power Configuration & High Drilling Efficiency
The XH300 is equipped with a high-performance 85kW diesel engine, providing a stable and ample power source. Paired with a high-torque rotary system (5500-8100 N·m), it effortlessly drives the drilling tools for efficient operation within a 140-325mm diameter range. Whether in soft soil or medium-hard rock layers, the equipment maintains a steady drilling speed, reducing the risk of stuck rods. The working air pressure range of 1.7-3.0 MPa further ensures precise control of power output under different geological conditions, helping you significantly shorten project cycles.
Multi-Formation Adaptive Drilling Solutions
Versatile Machine, Effortlessly Handles Complex Geology For rocky strata, the XH300 can employ alloy drill bits or button bits for rotary percussion drilling, enabling high-speed fragmentation of hard rock. In unstable formations like pebble-cobble layers, it can be paired with an air compressor and DTH hammer, implementing casing drilling combined with a casing drive system to effectively prevent borehole wall collapse. This flexible combination of techniques allows the equipment to complete hole formation in various complex strata without the need for additional large auxiliary machinery, greatly expanding its application scenarios.
Simple & Convenient Operation
Compact Structure, Advanced Intelligent Hydraulics for More Effortless Work The XH300 features a crawler chassis design, combining mobility with site adaptability, making it particularly suitable for mountainous areas and confined worksites. The advanced hydraulic system not only provides high cylinder thrust and hoisting force but also enables precise control of key movements, making operation intuitive and straightforward. The equipment emphasizes ease of maintenance, with daily service points logically arranged, effectively reducing downtime and helping users improve long-term operational benefits.
Water well drilling rig series accessories
● Mud pump
● Air compressor
● Drill pipe
● Drilling bit
● Cone bit
● Latent hole impactor
● Air hose
Technical parameter
|
Drilling diameter |
140-325 |
Rotation torque(N.M) |
5500-8100 |
|
Drilling depth (m) |
300 |
Rig lifting force (T) |
17 |
|
Drill frame stroke (m) |
6.6 |
Diesel engine power(Kw) |
85 |
|
Drill pipe diameter (mm) |
76-89-102 |
Uphill angle (Max) |
30 |
|
Working pressure (Mpa) |
1.7-3.0 |
Size (M) |
3.7*1.9*2.3 |
|
Air consumption (m³/min) |
17-35 |
Weight (T) |
6.5 |
|
Slewing speed (rpm) |
45-70 |
Travel Speed (km/h) |
2.5 |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
