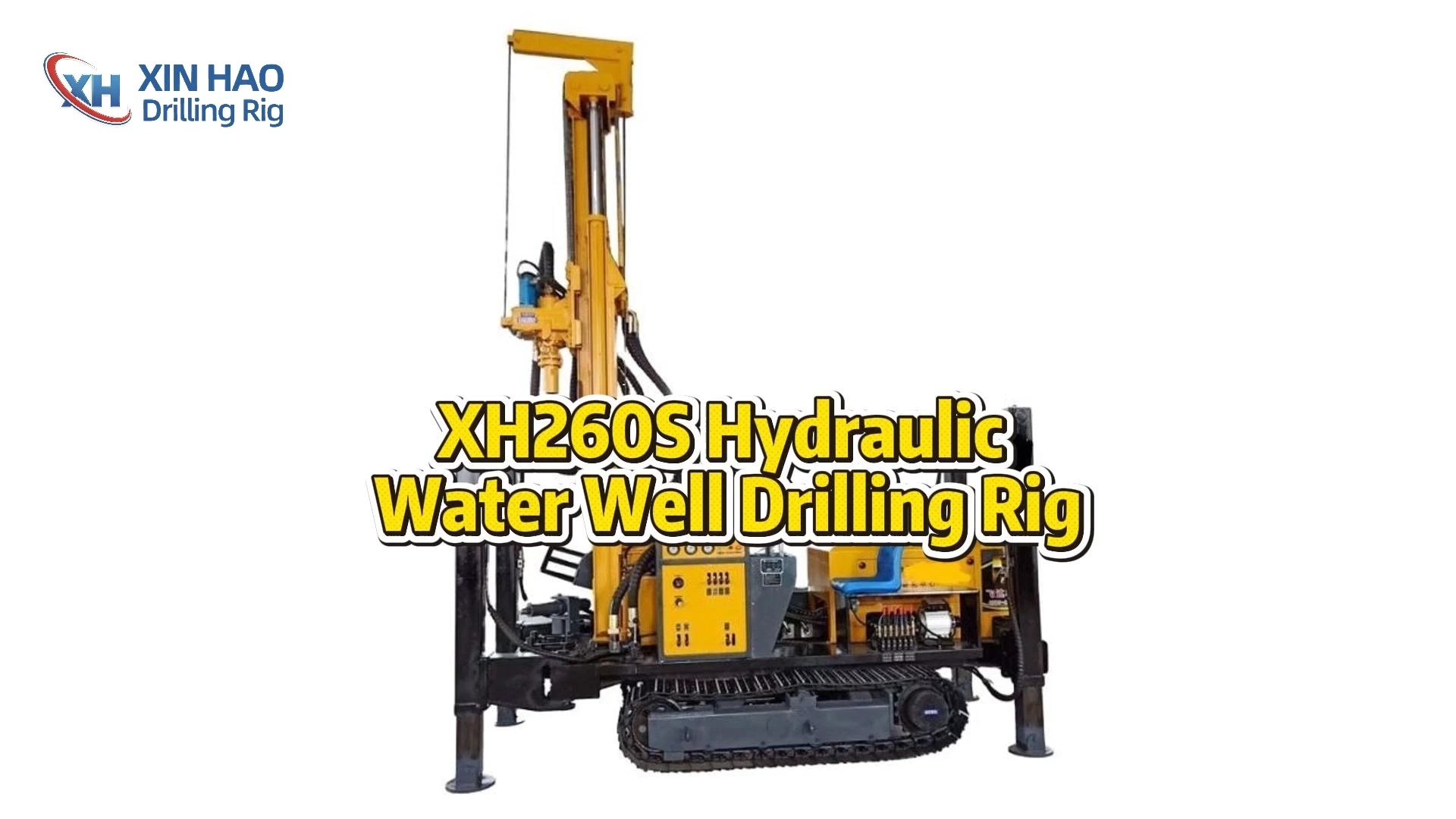

XH260S Multifunction Hydraulic Drill For Potable Water And Irrigation
Integrated operating platform, efficient construction, used for drinking water wells and mining agricultural irrigation
5.0
Product Series:
XH260S
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
Deep water Wells, geothermal Wells, irrigation Wells, etc. are especially suitable for water conservancy projects in mountainous areas and rocky strata
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The XH260S Hydraulic Water Well Drilling Rig is professionally tailored for medium-depth water extraction projects, such as drilling water wells in mountainous areas or for agricultural irrigation. In hard rock formations, it enables efficient drilling through a high-torque hydraulic motor, hydraulic cylinder feed system, and button bits. In unstable pebble-cobble layers prone to collapse, it can be equipped with an air compressor and DTH hammer, adopting casing drilling technology to mitigate risks.
With a drilling diameter range of 140–305 mm and a maximum depth of 260 m, the rig works efficiently with 76–89 mm drill pipes. Full hydraulic control ensures easy, flexible operation, convenient shifting, and excellent mobility, saving both time and effort.
Our advantage
Integrated Control Platform – Simple Operation
Tired of complex equipment controls and unpredictable on-site conditions? The XH260S offers a straightforward solution. Its integrated control platform makes operation intuitive, reducing training costs and operational risks. The specially optimized cooling system ensures stability and reliability during continuous high-intensity work. In addition, a range of optional accessories (such as generators and centrifugal pumps) allows the rig to perfectly adapt to your unique requirements.
Powerful Performance & High Torque – Stable in Hard Formations
The XH260S is equipped with a 76 kW diesel engine that delivers consistent and reliable power for drilling. Combined with a high rotary torque of 5,700 N・m, it easily drives the drill bit into hard rock layers. The rotary speed of 45–70 rpm can be adjusted according to ground hardness: low speed with high torque for steady progress in hard rock, and higher speed for efficient hole completion in softer layers. The integration of the power system and hydraulic technology ensures both operational stability and construction efficiency.
Effortlessly Drills to 260 Meters
The XH260S series focuses on core drilling needs, achieving depths of up to 260 meters and covering the vast majority of water well projects. With a total weight of 6 tons, the rig offers a balance of site accessibility and operational stability, making transportation and repositioning easier and more cost-effective. Using standard 76–89 mm drill pipes, it efficiently completes holes with diameters of 140–305 mm, striking an optimal balance between performance and efficiency. This enables you to complete drilling tasks reliably with lower investment.
Water well drilling rig series accessories
● Mud pump
● Air compressor
● Drill pipe
● Drilling bit
● Cone bit
● Latent hole impactor
● Air hose
Technical parameter
|
Drilling Diameter (mm) |
140-305 |
Rotary Torque (N・m) |
5200-5700 |
|
Drilling Depth (m) |
260 |
Lifting Power (t) |
15 |
|
Drill Mast Stroke (m) |
6.6 |
Diesel Engine Power (KW) |
76 |
|
Drill Pipe Diameter (mm) |
76-89 |
Travel Speed (km/h) |
2.5 |
|
Working Pressure (MPa) |
1.7-3.0 |
Uphill Angle (Max) |
30 |
|
Air Consumption (m³/min) |
17-31 |
Size (m) |
5.2×1.8×2.3 |
|
Rotary Speed (rpm) |
45-70 |
Weight (T) |
6 |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
