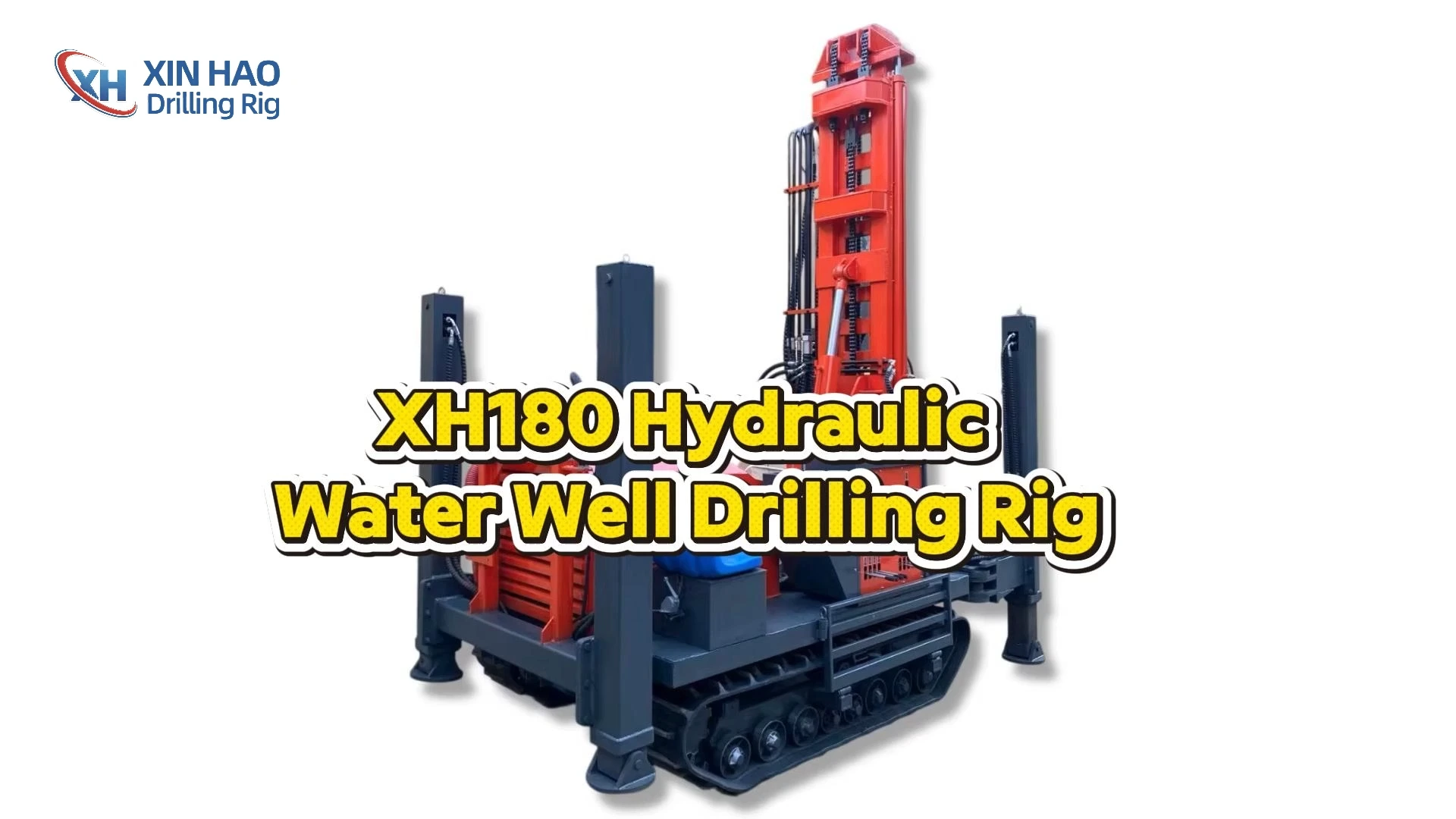

XH180 Hydraulic Water Well Drill For Mineral Exploration 180m
For mineral exploration and mine drilling, 180m deep hydraulic water well drilling rig, pneumatic well drilling rig, customizable diesel well drilling rig
5.0
Product Series:
XH180
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
Deep water wells, geothermal wells, irrigation wells, etc., especially suitable for water conservancy projects in mountainous areas and rocky strata
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The XH180 Crawler Water Well Drilling Rig is a compact, efficient, and versatile drilling equipment designed primarily for drilling water wells, agricultural irrigation wells, and boreholes for other purposes. It is particularly suitable for water extraction projects in mountainous areas and rock formations.
Utilizing advanced hydraulic technology, the rig is equipped with a high-torque hydraulic rotary motor and large-diameter hydraulic cylinders, responsible for rotary drilling and feed/lifting operations respectively. With standard alloy drill bits and other tools, it performs rotary percussion drilling. Key specifications include a drilling diameter of 140–254 mm, a maximum drilling depth of 180 m, rotary speed of 45–70 rpm, rotary torque of 3500–4800 N·m, and travel speed of 2.5 km/h.
Our advantage
High Efficiency & Powerful Performance
Worried about hard geology? The XH180 gives you full confidence.
With a maximum drilling depth of 180 m and a rotary speed of 45–70 rpm, the XH180 delivers high torque ranging from 3500 to 4800 N·m, enabling it to easily tackle hard rock formations. Powered by a 68 kW diesel engine, the rig ensures stable performance during prolonged operation. Its air consumption of only 17–31 m³/min also helps effectively reduce operating costs.
With a maximum drilling depth of 180 m and a rotary speed of 45–70 rpm, the XH180 delivers high torque ranging from 3500 to 4800 N·m, enabling it to easily tackle hard rock formations. Powered by a 68 kW diesel engine, the rig ensures stable performance during prolonged operation. Its air consumption of only 17–31 m³/min also helps effectively reduce operating costs.
Strong Adaptability & Uninterrupted Work
Poor site access? The XH180 moves flexibly even in rough terrain.
Its robust crawler chassis and travel speed of 2.5 km/h provide excellent mobility over challenging grounds, with a climbing ability of 30 degrees. The compact body (3.7 × 1.75 × 2.35 m) allows access to confined spaces, enabling quick positioning at drill sites without frequent hoisting. A 3.6 m mast stroke and compatibility with various drill pipe diameters (76–89 mm) further enhance its adaptability to diverse well requirements.
Its robust crawler chassis and travel speed of 2.5 km/h provide excellent mobility over challenging grounds, with a climbing ability of 30 degrees. The compact body (3.7 × 1.75 × 2.35 m) allows access to confined spaces, enabling quick positioning at drill sites without frequent hoisting. A 3.6 m mast stroke and compatibility with various drill pipe diameters (76–89 mm) further enhance its adaptability to diverse well requirements.
Advanced Technology & Reliable Operation
Customizable to your needs! The XH180 incorporates a modern hydraulic system, high-torque motor, and large-diameter hydraulic cylinders to ensure smooth drilling and lifting. An operating air pressure of 1.7–3.0 MPa guarantees precise control, while a 12-ton hoisting capacity enhances durability and safety. Its intelligent design simplifies complex drilling tasks, improves equipment longevity, and maximizes your return on investment.
Water well drilling rig series accessories
● Mud pump
● Air compressor
● Drill pipe
● Drilling bit
● Cone bit
● Latent hole impactor
● Air hose
Technical parameter
|
Drilling Diameter (mm) |
140 - 254 |
Rotary Torque (N・m) |
3500 - 4800 |
|
Drilling Depth (m) |
180 |
Lifting Power (t) |
12 |
|
Drill Mast Stroke (m) |
3.6 |
Diesel Engine Power (KW) |
68 |
|
Drill Pipe Diameter (mm) |
76 - 89 |
Travel Speed (km/h) |
2.5 |
|
Working Pressure (MPa) |
1.7 - 3.0 |
Uphill Angle (Max) |
30° |
|
Air Consumption (m³/min) |
17 - 31 |
Size (m) |
3.7×1.75×2.35 |
|
Rotary Speed (rpm) |
45 - 70 |
Weight (T) |
4.2 |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
