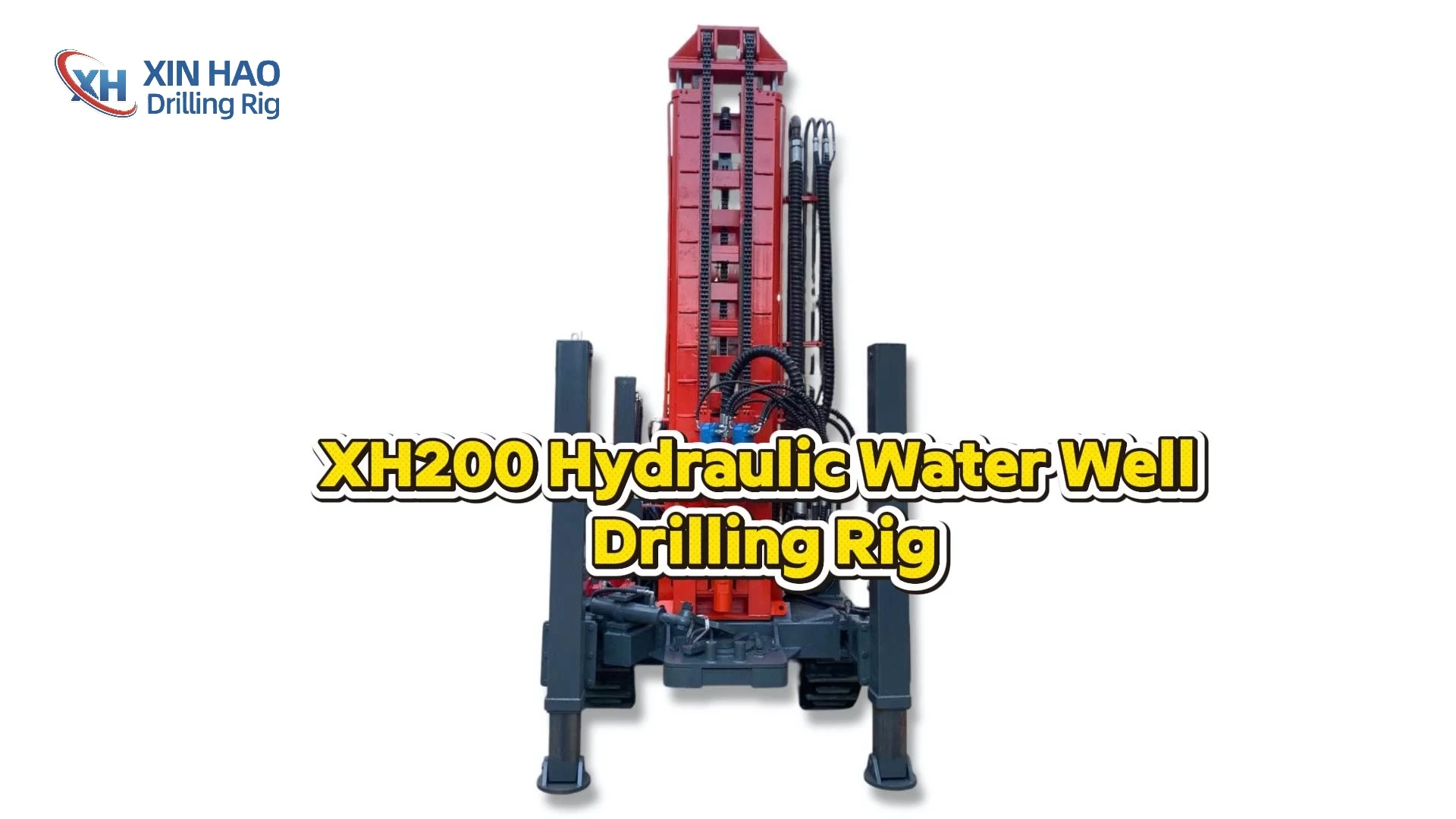

Efficient Hydraulic Drill Rig For Deep Wells To 200M XH200
Efficient drilling rig for deepwater well exploration and large-scale drilling rigs.
5.0
Product Series:
XH200
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
Deep water wells, geothermal wells, irrigation wells, etc., especially suitable for water conservancy projects in mountainous areas and rocky strata
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
Your reliable water source may lie hidden beneath hard rock or complex mountainous terrain. The XH200 Hydraulic Water Well Drilling Rig is built for this very purpose. More than just a drill, it is a mobile, high-efficiency drilling solution designed to quickly and steadily access water in challenging environments like mountains, rock formations, and pebble-cobble strata.
It can drill holes with a diameter of 140-305 mm and depths of up to 200 meters. Key specifications include a rotary speed of 45-70 rpm, rotary torque of 3500-4800 N·m, and a travel speed of 2.5 km/h.
Our advantage
Efficient Penetration in Hard Rock & Rapid Hole Completion
The XH200 Hydraulic Water Well Drilling Rig is engineered to challenge hard rock formations. Utilizing advanced hydraulic technology, it delivers a powerful torque of up to 4800 N·m and a pull-down force of 12 tons, driving button bits for effective rotary percussion drilling. Whether tackling solid rock or complex strata, it ensures highly efficient drilling, helping you productively complete water wells up to 200 meters deep and significantly boost project efficiency.
Flexible Adaptation to Complex Strata & Safe, Stable Operation
When facing unstable formations like pebble-cobble layers, the XH200 is your dependable solution. The rig can be paired with an air compressor and DTH hammer, employing a casing drilling system for follow-up drilling. This method effectively prevents borehole wall collapse, ensuring safe and stable hole completion even in complex geological conditions, thereby safeguarding both construction progress and personnel safety.
New Fully Hydraulic Technology for Reliability & Ease
The core advantage of the XH200 Crawler Hydraulic Water Well Drilling Rig lies in its robust and stable, next-generation hydraulic system. Equipped with a high-torque rotary motor and large-diameter, large-bore cylinders, it guarantees powerful feed force and hoisting capacity. Xinhau drilling equipment not only delivers ample power but also emphasizes enduring reliability. With its simple design, straightforward operation, and low maintenance needs, it significantly reduces your long-term operating and maintenance costs, representing a smart investment for those focused on long-term value.
Water well drilling rig series accessories
● Mud pump
● Air compressor
● Drill pipe
● Drilling bit
● Cone bit
● Latent hole impactor
● Air hose
Technical parameter
|
Drilling Diameter (mm) |
140 -305 |
Rotary Torque (N・m) |
3500-4800 |
|
Drilling Depth (m) |
200 |
Lifting Power (t) |
12 |
|
Drill Mast Stroke (m) |
3.6 |
Diesel Engine Power (KW) |
65 |
|
Drill Pipe Diameter (mm) |
76-89 |
Travel Speed (km/h) |
2.5 |
|
Working Pressure (MPa) |
1.7-3.0 |
Uphill Angle (Max) |
30 |
|
Air Consumption (m³/min) |
17-31 |
Size (m) |
3.7*1.75*2.35 |
|
Rotary Speed (rpm) |
45-70 |
Weight (T) |
4.5 |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
