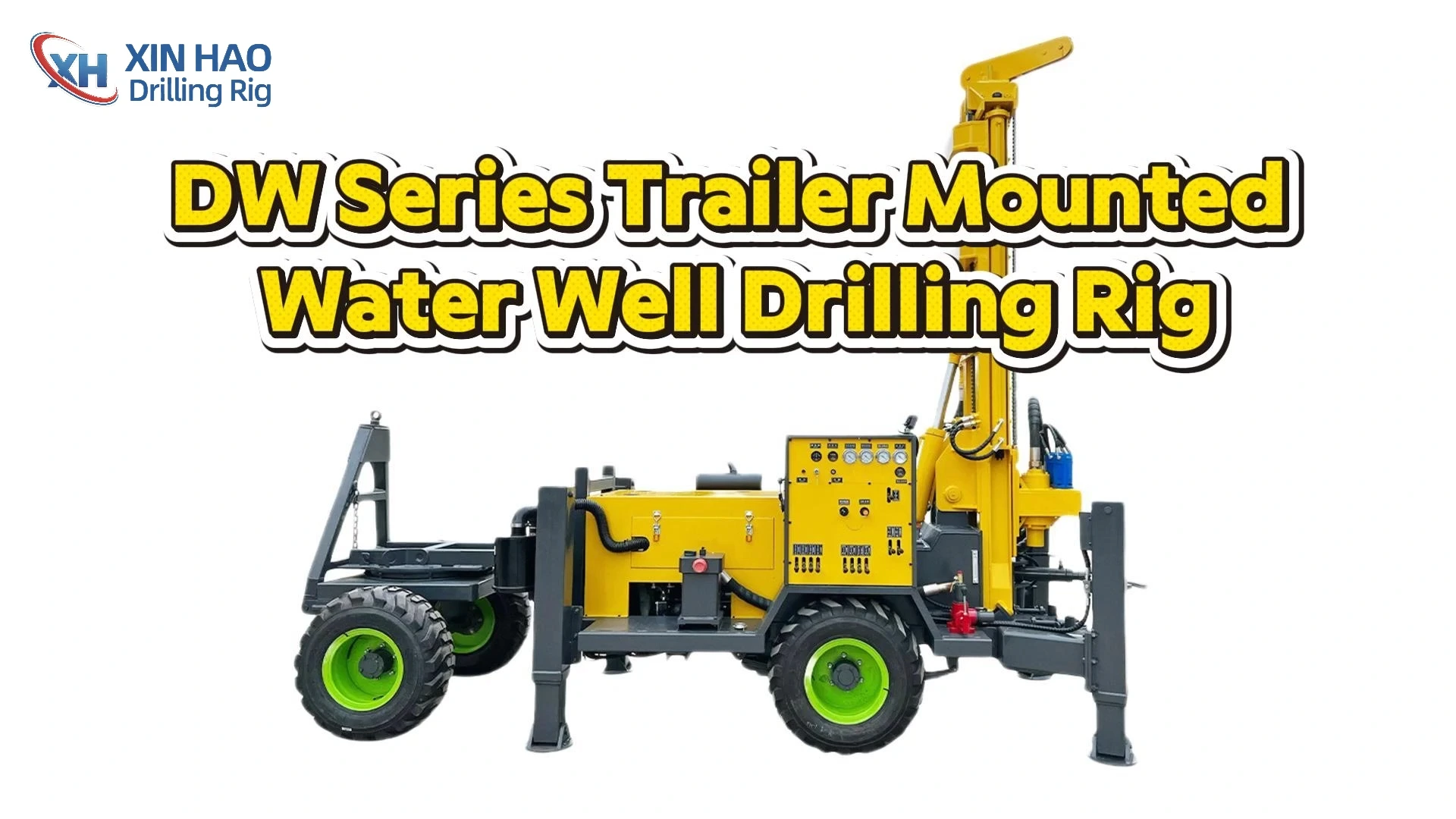

DW Series Portable Trailer Mounted Drill Rig 180 To 400m 1
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 2
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 3
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 4
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 5
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 6
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 1
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 2
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 3
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 4
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 5
DW Series Portable Trailer Mounted Drill Rig 180 To 400m 6

DW Series Portable Trailer Mounted Drill Rig 180 To 400m

Easy-to-operate trailer-mounted water well drilling rigs, 180-400m deepwater drilling trailer-mounted water well drilling rigs, trailer-mounted hydraulic water well drilling rigs
5.0
Product Series:
DW180-DW400
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
This trailer-mounted water well drilling rig is particularly suitable for deepwater wells, geothermal wells, irrigation wells, and other water conservancy projects in mountainous areas and rocky formations.
design customization

    oops...!

    no product data.

    Go to homepage

    Product Introduction

    The Xinhau DW series of portable trailer-mounted water well drilling rigs offers a comprehensive solution covering drilling depths from 180 to 400 meters.  Featuring a trailer-type design for enhanced mobility, these rigs can be quickly towed to various sites via road.  They integrate top-drive full hydraulic technology, an efficient cuttings removal system, and a highly stable drill mast, enabling them to handle diverse complex geology – from soft soil layers to hard rock.


    Users can flexibly select or customize different models based on specific drilling depth and geological requirements.  Whether for water well drilling, agricultural irrigation, or exploration projects, it is the ideal equipment for achieving efficient, low-cost drilling operations.

    undefined

    Our advantage

    DW Series Portable Trailer Mounted Drill Rig 180 To 400m 8
    Extensive Drilling Depth & Wide Applicability
    The DW series offers seven models (covering 180-400 meter depths) to meet the budgetary and depth requirements of your different projects. Its core performance scales with the model, delivering up to 11,200 N·m of rotary torque and 25-ton hoisting capacity, specifically designed for deep holes and hard rock formations. Utilizing 58-92 kW diesel engines, a multi-gear transmission, and a hydraulic automatic feed system, the rig achieves efficient power matching and operational simplicity, ensuring powerful drilling while maintaining energy efficiency.
    DW Series Portable Trailer Mounted Drill Rig 180 To 400m 9
    Designed for Efficient Mobility & Stable Operation
    This series of water well drilling rigs adopts a robust trailer-type chassis design for easy towing and rapid relocation between sites. On-site, its hydraulic outriggers enable fast leveling, providing stable support for high-intensity drilling. Combined with top-drive full hydraulic technology, a complete hydraulic oil cooling system, and mast strokes of 3.6 meters or 6.6 meters, the rig makes rod handling more convenient and faster, significantly reducing non-drilling time and comprehensively enhancing operational efficiency.
    DW Series Portable Trailer Mounted Drill Rig 180 To 400m 10
    Multi-Process Capability & Customizability
    Suitable for various scenarios including water well drilling, mineral exploration, and construction project investigation, the rig can handle geological formations from grade 2 to 9 (including gravel and hard rock). Equipped with an integrated control system and remote line control device, operation is intuitive and straightforward. To adapt to complex strata, it flexibly supports positive circulation cuttings removal with a mud pump or can switch to air compressor-assisted DTH hammer percussion drilling for hard rock. Alloy or PDC bits can be selected as needed. The rig also features reserved interfaces for add-ons like mud pumps and welding machines, supports power switching and functional expansion, enabling multi-purpose use and significantly improving equipment utilization and project economy.

    Product features

    1_副本 拷贝
    Cummins dieselen ne
    2_副本 拷贝
    Dual-motor drill head
    4 拷贝
    Multistage gear pump
    5 拷贝
    All parameter monitoring
    6 拷贝
    Hydraulic pipe breakout wrench

    Technical parameter

    Trailer model

    DW180

    DW200

    DW260

    DW260S

    DW300

    DW350

    DW400

    Drilling diameter(mm)

    140-254

    140-305

    140-305

    140-305

    140-325

    140-325

    140-325

    Driling depth(m)

    180

    200

    260

    260

    300

    350

    400

    Dill frame stroke(m)

    3.6

    3.6

    3.6

    6.6

    3.6

    6.6

    6.6

    Drill pipe diameter(mm)

    76-89

    76-89

    76-89

    76-89

    76-89-102

    89-102

    89-102-114

    Working pressure(Mpa)

    1.7-3.0

    1.7-3.0

    1.7-3.0

    1.7-3.0

    1.7-3.0

    1.7-3.3

    1.7-3.5

    Air consumption(m³/min)

    17-31

    17-31

    17-31

    17-31

    17-35

    17-35

    17-35

    Slewing speed(pm)

    45-70

    45-70

    45-70

    45-70

    45-70

    45-115

    45-130

    Rotation torque(N/M)

    3500-4800

    3500-4800

    5200-5700

    5200-5700

    5500-8100

    6900-9700

    7200-11200

    Riglifing force(T)

    12

    12

    15

    15

    17

    24

    25

    Diesel engine power(Kw)

    58

    65

    76

    76

    85

    91

    92

    Walking speed(Km/h)

    2.5

    2.5

    2.5

    2.5

    2.5

    2.5

    2.5

    Upil angle(Max)

    30

    30

    30

    30

    30

    30

    30

    size(M)

    4.71.8*2.3

    4.7*1.8*2.3

    4.7*1.8*2.3

    5.6×1.9×2.45

    5.6×1.9×2.45

    5.6×1.9×2.45

    5.6×1.9×2.45

    weight(T)

    3

    3.2

    3.5

    4.5

    5

    5.8

    6.2

    Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.

    Our Services

    2_副本 拷贝 2
    End-to-End Project Support
    With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
    6 拷贝 2
    Integrated Solutions & Training
    We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
    DW Series Portable Trailer Mounted Drill Rig 180 To 400m 18
    Responsive After-Sales System
    Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
    DW Series Portable Trailer Mounted Drill Rig 180 To 400m 19
    Flexible Customization
    Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
    DW Series Portable Trailer Mounted Drill Rig 180 To 400m 20
    Efficient Spare Parts Supply
    We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
    DW Series Portable Trailer Mounted Drill Rig 180 To 400m 21
    Global Logistics & Delivery
    We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
