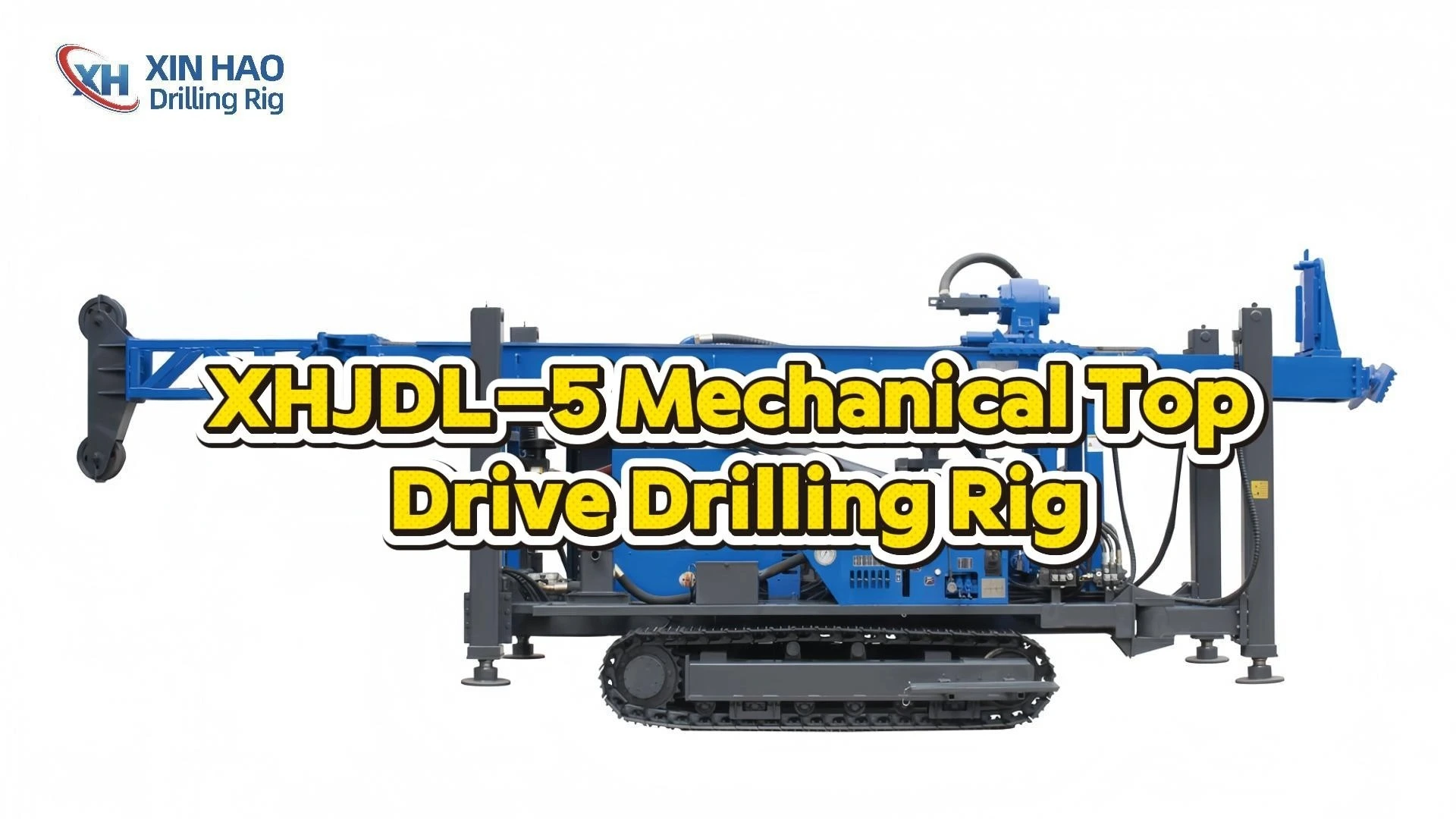

XHJDL-5 Mechanical Top Drive Drill Rig 500m Fuel Efficient
Integrated operating platform, efficient construction, used for drinking water wells and mining agricultural irrigation
5.0
Product Series:
XHJDL-5
Brand:
XinHao
Customization:
Customized according to customer needs
Application:
Primarily used for oil, gas, and geological exploration drilling operations
Scenario:
Widely used in onshore, oilfield, offshore, and geological exploration scenarios requiring deep drilling
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The XHJDL-5 mechanical top-drive drill rig is a deep-drilling solution designed by Xinhao for complex global drilling conditions. Combining water and air drilling capabilities, it boasts national invention patents. It can achieve a water well drilling depth of 500 meters and a wireline coring capability of 800 meters, making it suitable for a variety of applications, including oil, gas, geological exploration, and deepwater well development.
This rig combines high-intensity operational stability with low energy consumption, meeting the core requirements of global customers, including hard rock drilling in Saudi Arabia, adaptability to diverse geological conditions in Mexico, environmental standards in Germany, and full-cycle cost control in the UK.
Our advantage
Easily Complicated Working Conditions
● For hard rock and high-temperature environments, the XHJDL-5 mechanical top-drive drill rig features a powerful 12,000 N·m torque, a 92 kW diesel engine, and a 5-speed manual transmission, ensuring uncompromising deep-hole drilling power.
● A heavy-duty steel crawler chassis (with a load capacity of 12 tons) ensures stable maneuverability on sandy and sloping terrain.
● An efficient mud circulation system effectively addresses water resource constraints in arid regions, enabling rapid completion of deep-well projects.
● A heavy-duty steel crawler chassis (with a load capacity of 12 tons) ensures stable maneuverability on sandy and sloping terrain.
● An efficient mud circulation system effectively addresses water resource constraints in arid regions, enabling rapid completion of deep-well projects.
High Exploration Drilling Efficiency
● The XHJDL-5 features versatile drilling modes and a wide range of drill pipe compatibility (φ60-102 mm), making it easily capable of navigating complex formations such as volcanic and sedimentary rocks.
● Flexible options for core components such as the mud pump and engine, combined with high thrust (180 kN) and lifting force (240 kN), significantly improve the overall efficiency of mineral exploration and water well engineering while ensuring cost control.
● Flexible options for core components such as the mud pump and engine, combined with high thrust (180 kN) and lifting force (240 kN), significantly improve the overall efficiency of mineral exploration and water well engineering while ensuring cost control.
Environmentally Friendly and Energy-Saving
● Focusing on precision and environmental protection, the XHJDL-5 mechanical top drive drill rig utilizes an intelligent hydraulic transmission and a low-noise design, meeting international emission standards.
● The power unit has a speed range of 43-1080 rpm, a low failure rate, and convenient forward and reverse switching, along with high transmission efficiency. This significantly reduces power consumption and ongoing maintenance costs, resulting in greater efficiency and energy savings.
● It meets the stringent European market requirements for long equipment life, high reliability, and lifecycle economics.
● The power unit has a speed range of 43-1080 rpm, a low failure rate, and convenient forward and reverse switching, along with high transmission efficiency. This significantly reduces power consumption and ongoing maintenance costs, resulting in greater efficiency and energy savings.
● It meets the stringent European market requirements for long equipment life, high reliability, and lifecycle economics.
Technical parameter
|
Rig type |
XHJDL-5 |
XHXJDL-5 |
Max. Torque |
12000N.m |
|
Weight |
1100kg |
12000kg |
Drill head feed stroke |
3500mm |
|
Dimension (transport) |
6300x2000x2650mm |
6300x2000x2800mm |
Drill pipe dia. |
φ60、φ76、φ89、102mm NQ/HQ/PQ |
|
Dimension (working) |
3800x3250x8500mm |
4200x3600x8800mm |
Engine Model |
YN48GBZ |
|
Drilling angle |
90° |
75-90° |
Rated power/speed |
92kW/2400rpm |
|
Drilling depth for water well |
500m |
Walking speed |
0-2km/h |
|
|
Wireline coring N size |
800m |
Climbing angle |
20° |
|
|
Borehole (Drill bit) dia. |
φ75-220mm |
Mechanical winch capacity |
80kN |
|
|
Drill head lifting force |
240kN |
Mud pump |
BW160/BW200/BW250 ( Optional) |
|
|
Drill head feeding force |
180kN |
Crawler chassis |
Steel 400mm*43 sections |
|
|
Rotary speed RPM |
Forward: 43-1080rpm Reverse: 47-144rpm |
Crawler load |
12000kg |
|
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
