Dual Purpose Top Drive Drill Rig For Water And Gas
Water and gas dual-purpose drilling rig, low energy consumption, energy-saving drilling rig, hydraulic rotary drilling rig
5.0
Product Series:
XHJDL-280
Brand:
XinHao
Customization:
Customized according to customer needs
Application:
Primarily used for oil, gas, and geological exploration drilling operations
Scenario:
Widely used in onshore, oilfield, offshore, and geological exploration scenarios requiring deep drilling
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction

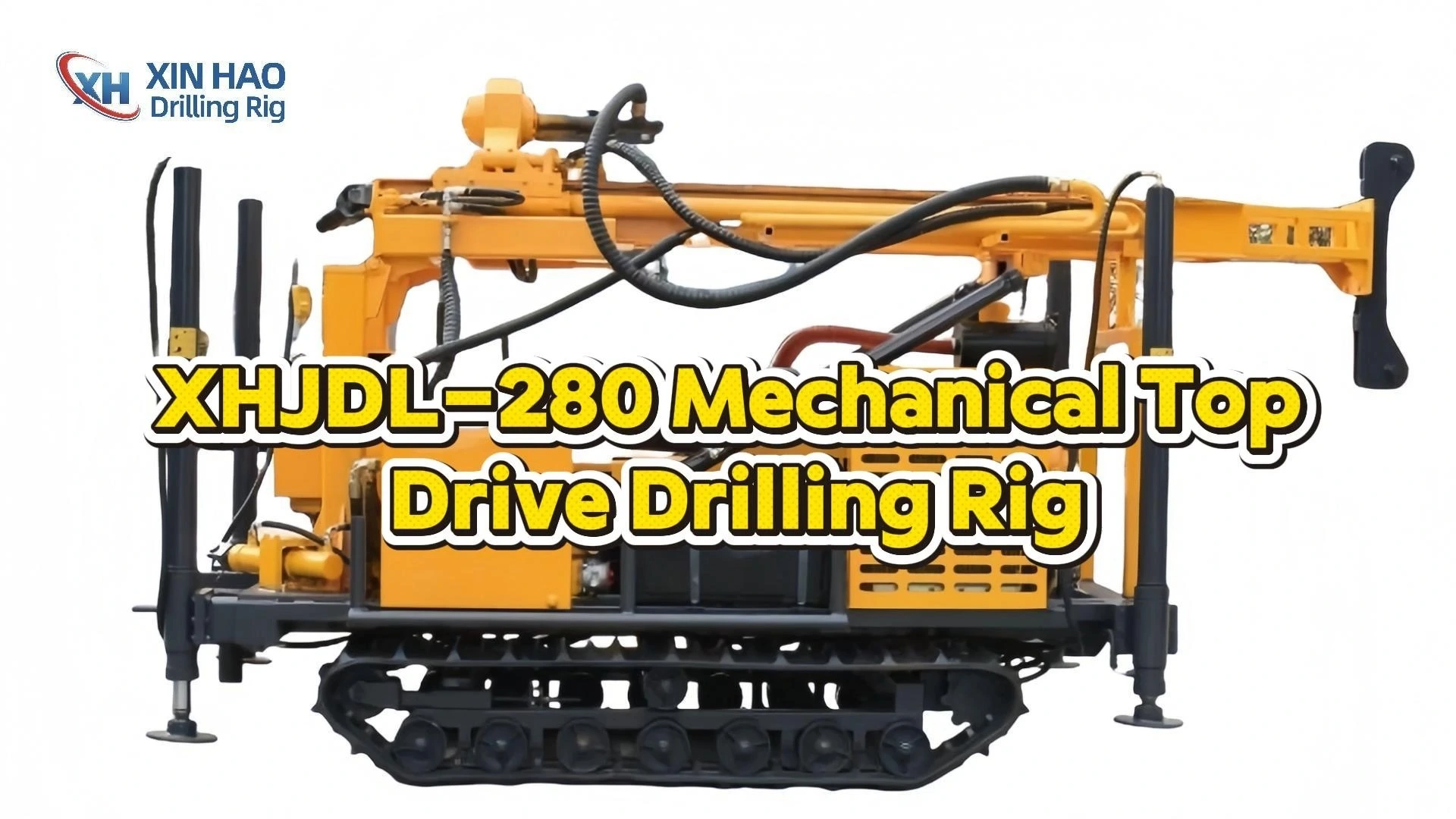

The XHJDL-280 mechanical top drive drilling rig is a drilling equipment independently developed by our company, integrating the functions of water drilling and air drilling (National Invention Patent :ZL201510479602.4). It can solve the problems of high difficulty in air drilling construction and low construction efficiency of rotary drilling RIGS in hard rock layers, gravel layers and pebble layers. It can be applied to various strata It has significantly enhanced the comprehensive efficiency of core drilling and geological exploration.
Our advantage
Strong power
● This mechanical top drive drilling rig is equipped with a 5-speed manual car transmission and a powerful mechanical top drive force head. It has a wide speed range and convenient forward and reverse rotation switching, which can precisely match the speed and torque requirements of different strata.
● The power head provides a wide rotational speed range of 33 to 1120 r/min and a maximum torque of 9800N·m. Combined with a long stroke design of 2300mm, it effectively reduces the frequency of frequent lifting and lowering of the drill and the risk of stuck drill, directly improving the pure drilling time and operation safety.
● The power head provides a wide rotational speed range of 33 to 1120 r/min and a maximum torque of 9800N·m. Combined with a long stroke design of 2300mm, it effectively reduces the frequency of frequent lifting and lowering of the drill and the risk of stuck drill, directly improving the pure drilling time and operation safety.
High-efficiency and energy-saving design
● It adopts a mechanical top drive transmission structure, with a short transmission path and low energy loss. Compared with traditional equipment, it is more energy-efficient.
● It is equipped with a dual oil pump supply system to achieve power distribution as needed for "single pump for drilling and dual pumps for lifting", ensuring strong lifting force while reducing power consumption. It not only saves operating costs but also conforms to the operation concept of high efficiency and environmental protection.
● It is equipped with a dual oil pump supply system to achieve power distribution as needed for "single pump for drilling and dual pumps for lifting", ensuring strong lifting force while reducing power consumption. It not only saves operating costs but also conforms to the operation concept of high efficiency and environmental protection.
Multi-functional in one machine, efficiently handling complex strata
The XHJDL-280 mechanical top drive drilling rig integrates the functions of water drilling and air drilling, making it an all-round solution for dealing with variable strata. It can effectively solve the industry pain points such as the difficulty of air down-the-hole hammer drilling in soil layers, the difficulty of air drilling construction in hard rock, gravel and pebble layers, and the low efficiency of rotary drilling RIGS. Whether it is water well drilling or geological core sampling, it can maintain efficient and stable drilling performance, significantly improving the overall construction efficiency.
Technical parameter
|
Rig type |
XHJDL-280 |
XHXJDL-280 |
Max. Torque |
9800N.m |
9800N.m |
|
Weight |
3800kg |
4800kg |
Drill head feed stroke |
2300mm |
2500mm |
|
Dimension (transport) |
460019002540mm |
560019002600mm |
Drill pipe dia. |
φ60、φ76、φ89mm |
NQ/HQ/PQ |
|
Dimension (working) |
380022005700mm |
380023007000mm |
Engine Model |
YN27 |
YN27GBZ |
|
Drilling angle |
90° |
75-90° |
Rated power/speed |
42kW/2400rpm |
58kW/2400rpm |
|
Drilling depth for water well |
280m |
280m |
Walking speed |
0-2km/h |
0-2km/h |
|
Wireline coring N size |
350m |
350m |
Climbing angle |
25-30° |
25-30° |
|
Borehole (Drill bit) dia. |
φ75-220mm |
φ75-220mm |
Mechanical winch capacity |
30kN |
30kN |
|
Drill head lifting force |
100kN |
100kN |
Mud pump |
BW160/BW200/BW250 ( Optional) |
BW160/BW200/BW250 ( Optional) |
|
Drill head feeding force |
50kN |
50kN |
Crawler chassis |
Rubber 350mm*56 sections |
Steel 300mm*38 sections |
|
Rotary speed RPM |
Forward：33-1120rpm |
Reverse：37-180rpm |
Crawler load |
5000kg |
6000kg |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
