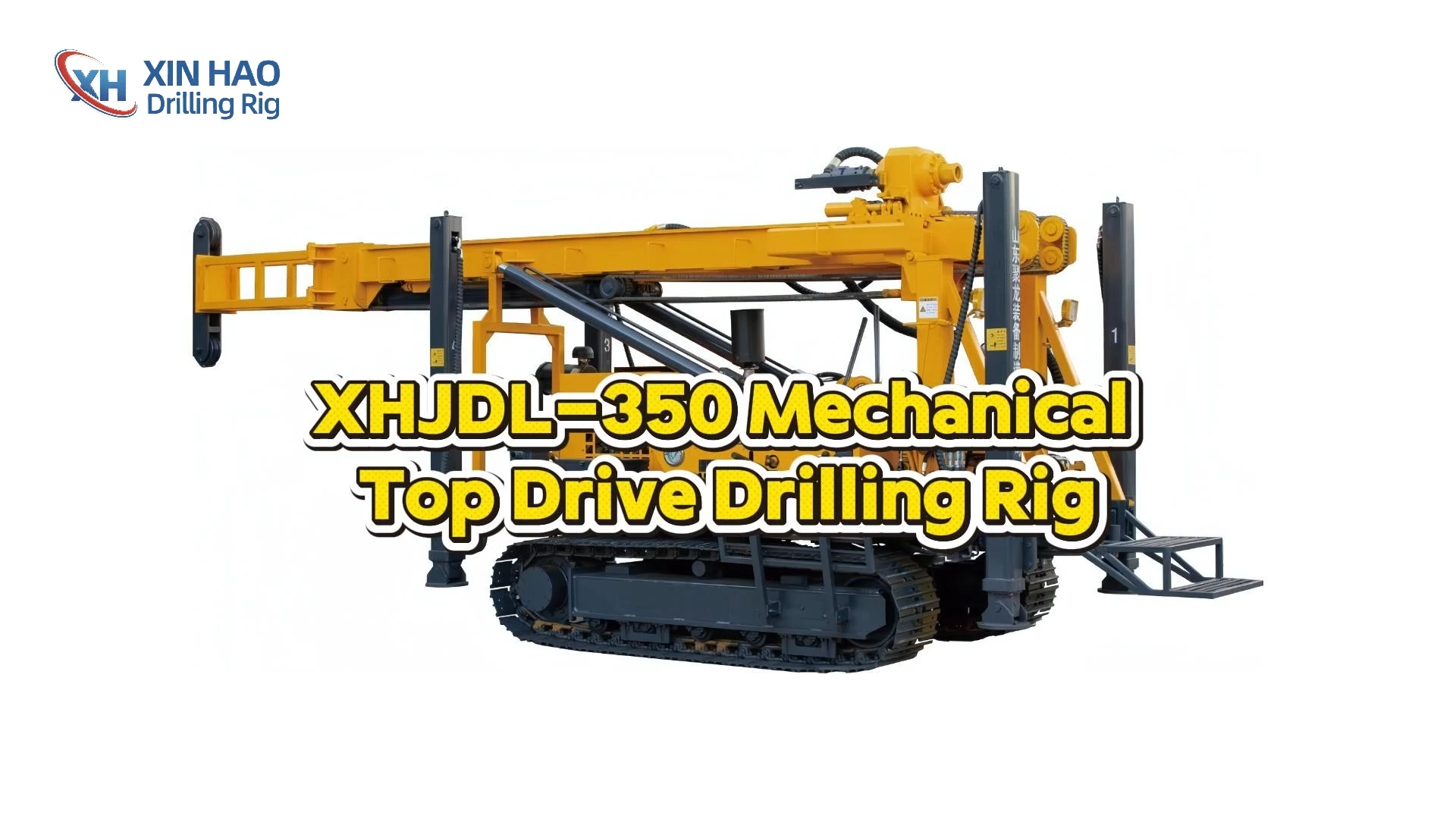

XHJDL-350 Crawler Top Drive Drill Rig For Geological Exploration
Geological exploration drilling rig, crawler drill rig, multifunctional, easy to operate drill rig, crawler drill rig
5.0
Product Series:
XHJDL-350
Brand:
XinHao
Customization:
Customized according to customer needs
Application:
Primarily used for oil, gas, and geological exploration drilling operations
Scenario:
Widely used in onshore, oilfield, offshore, and geological exploration scenarios requiring deep drilling
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
XHJDL-350 mechanical top drive driling rig is a driling equipment independently developed by the companythat can dril 90"and integrates the functions ofwater drll and air drll (National invention Patent:ZL201510479602.4).1t adopts 5.speed manual car transmission.wide speed range,sensitive and convenient forward and reverse switching,hightransmission eficiency,greatly reduced power energy consumption,more efficient and energy-saving.t solves the difficuty ofdriling with air down-the-hole hammers in soil layers and the low construction efficiency of rotary driling rigs in hard rocklayers,gravel,and pebble layers.
Our advantage
Dual-Purpose Water and Gas Drilling
The XHJDL-350 mechanical top-drive drill rig integrates both water and gas drilling functions. Its efficient mechanical transmission system significantly reduces energy consumption and enables a single machine to solve drilling challenges in a variety of complex formations. Whether used for core drilling, engineering geological exploration, hydrology, water wells, or agricultural irrigation wells, it provides stable and reliable drilling power, directly improving operational efficiency.
350m Water Well Drilling Capability
Capable of handling the challenges of diverse and complex terrains, its powerful 350m water well drilling depth and 600m wireline coring capability, combined with flexible drilling angles, ensures efficient completion of targeted drilling targets in a variety of complex terrains and working conditions. It is an ideal machine for reducing overall procurement costs and improving project profitability.
Customized Solutions
We understand that standard configurations may not meet the unique needs of every project. Therefore, Xinhao not only provides the XHJDL-350 standard model with excellent performance, but also provides you with flexible customized services - from the selection of accessories such as mud pumps and engines to the precise matching of mobile methods such as crawlers, we will tailor the most suitable mechanical top drive drilling solution according to your specific construction geology and working conditions to ensure that the equipment you obtain can create the greatest value.
Technical parameter
|
Rig type |
XHJDL-350 |
XHXJDL-350 |
Max. Torque |
10500N.m |
10500N.m |
|
Weight |
6000kg |
7000kg |
Drill head feed stroke |
3500mm |
3500mm |
|
Dimension (transport) |
6300x2000x2600mm |
6300x2000x2600mm |
Drill pipe dia. |
φ60、φ76、φ89mm |
NQ/HQ/PQ |
|
Dimension (working) |
3800x2400x7600mm |
3800x2400x7600mm |
Engine Model |
YN27 |
YN27GBZ |
|
Drilling angle |
90° |
75-90° |
Rated power/speed |
58kW/2400rpm |
65kW/2400rpm |
|
Drilling depth for water well |
350m |
350m |
Walking speed |
0-2km/h |
0-2km/h |
|
Wireline coring N size |
600m |
600m |
Climbing angle |
25-30° |
25-30° |
|
Borehole (Drill bit) dia. |
φ75-220mm |
φ75-220mm |
Mechanical winch capacity |
45kN |
45kN |
|
Drill head lifting force |
120kN |
120kN |
Mud pump |
BW160/BW200/BW250 Optional) |
BW160/BW200/BW250 (Optional) |
|
Drill head feeding force |
85kN |
85kN |
Crawler chassis |
Rubber 300mm*38 sections |
Steel 400mm*40 sections |
|
Rotary speed RPM |
Forward: 27-901rpm |
Reverse: 48-219rpm |
Crawler load |
6000kg |
8000kg |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
