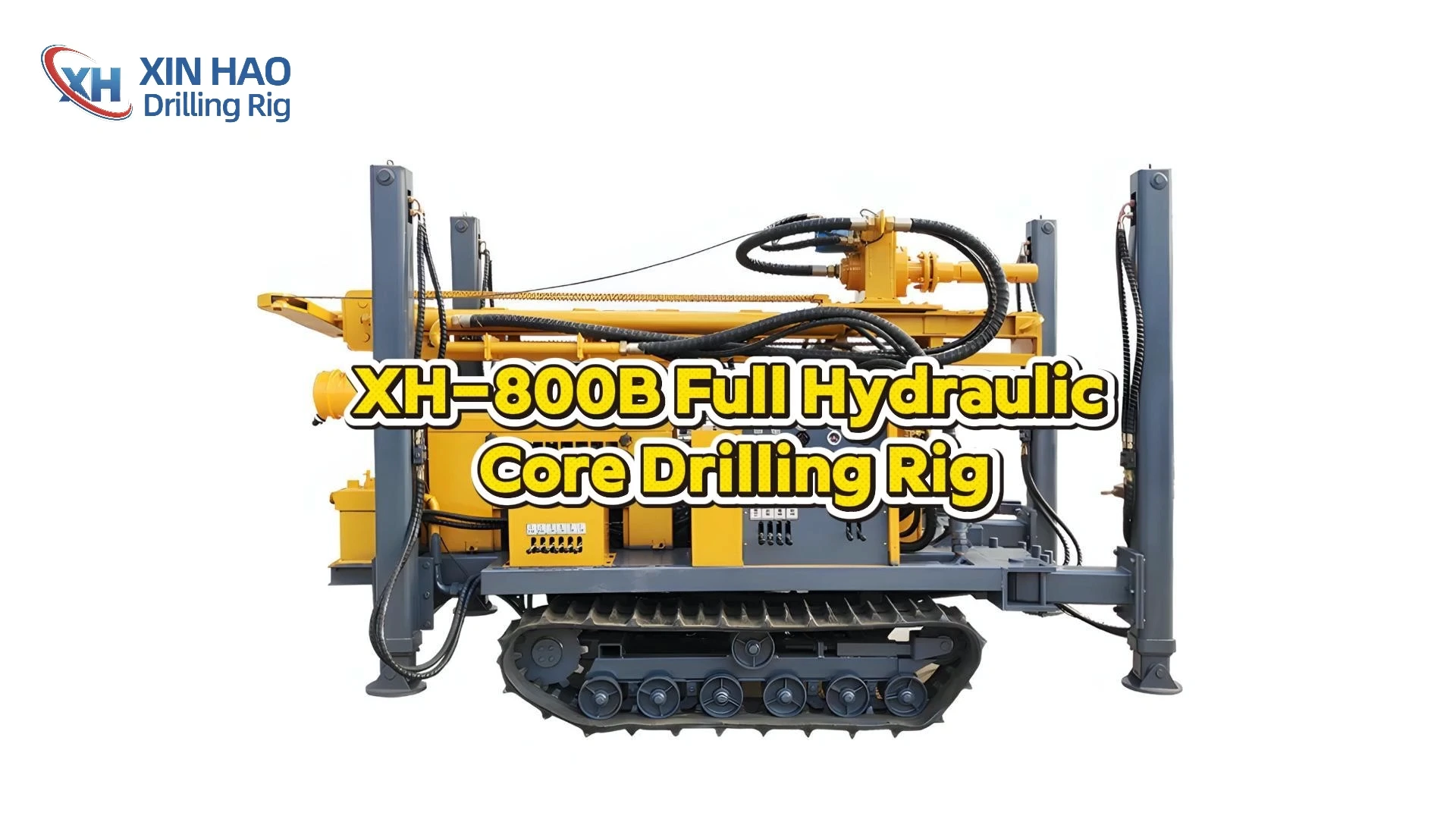

Fully Hydraulic Core Drilling Rig Crawler Mounted 800M XH800B
800 meter Crawler Type, Efficient Exploration Solution, Core hydraulic water well drilling rig, core drilling rig
5.0
Product Series:
XH-800B
Brand:
XinHao
Customization:
Customized to Customer Needs
Application:
Designed specifically for diamond core drilling, it utilizes hydraulic power to obtain underground rock cores, soil, and other samples
Scenario:
It is primarily used for geological exploration, mineral surveys, hydrogeological surveys, engineering geological surveys, and other operations requiring internal rock formation information
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The 800B is a crawler-type integrated drill primarily used for core drilling and exploration of metallic and non-metallic solid deposits. It can drill holes up to 800m deep and can also be used for small-diameter diamond core drilling. It features a Malaysian-sourced cycloidal motor and a patented gearbox independently developed by our factory, with a two-speed range of 560-1000 rpm and a maximum torque of 2000 Nm. The gripper features a self-compensation function to prevent drill runaway. The domestically advanced hydraulic system offers superior performance, ensuring stable drilling and rapid footage.
Our advantage
All-Terrain Crawler Chassis Design
● The XH-800B core drill features a heavy-duty crawler chassis designed for harsh field exploration environments. Its excellent gradeability (up to 35°) and all-terrain maneuverability ensure it can easily reach locations difficult to access, such as mud, sand, and rock.
● The integrated crawler design significantly reduces transfer time and transportation costs, allowing your exploration team to return to production faster and spend more time drilling, not driving.
● The integrated crawler design significantly reduces transfer time and transportation costs, allowing your exploration team to return to production faster and spend more time drilling, not driving.
Energy-Saving and Stable Design
● The XH-800B crawler core drill rig utilizes an energy-saving hydraulic system and low-emission diesel engine to deliver powerful power while effectively reducing fuel consumption, meeting global environmental standards.
● Equipped with our independently developed patented transmission and anti-drilling clamp, it offers lower failure rates, reduced maintenance costs, and enhanced personnel safety, directly improving your project's return on investment.
● Equipped with our independently developed patented transmission and anti-drilling clamp, it offers lower failure rates, reduced maintenance costs, and enhanced personnel safety, directly improving your project's return on investment.
Powerful Power System for Efficient Hard Rock Drilling
● Equipped with a 103kW high-power engine (available from leading brands such as Cummins and Weichai), coupled with an efficient full hydraulic system, it delivers a powerful 2200Nm of torque, easily navigating hard rock and complex formations.
● The equipment supports both mud and air drilling processes, and core accessories such as foam pumps, automatic rod changers, and generator sets can be flexibly configured to meet specific needs.
● Engine options include diesel and electric models, fully customizable to ensure the equipment's functionality is precisely matched to your exploration project.
● The equipment supports both mud and air drilling processes, and core accessories such as foam pumps, automatic rod changers, and generator sets can be flexibly configured to meet specific needs.
● Engine options include diesel and electric models, fully customizable to ensure the equipment's functionality is precisely matched to your exploration project.
Technical parameter
|
Dilingdepth |
800m |
Maximum drilling rod lift length |
1.5m/3m |
|
Engine power/rated speed |
103KW |
Give in strength |
4T |
|
Mainpump |
Gear pump |
Boosting power |
12T |
|
motor |
Gerotor motor |
Climbing ability |
0-35° |
|
Power head output speed |
280-1100r/min |
mud pump |
90-3 |
|
Speedreglation method |
Second gear |
Whole machine weight |
5.5T |
|
Maximum torque |
2200nm |
External dimensions |
3500x2100x5800mm |
|
Go ahead with the process |
2m/3.4m |
Transpor size |
4500x2100x2460mm |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
