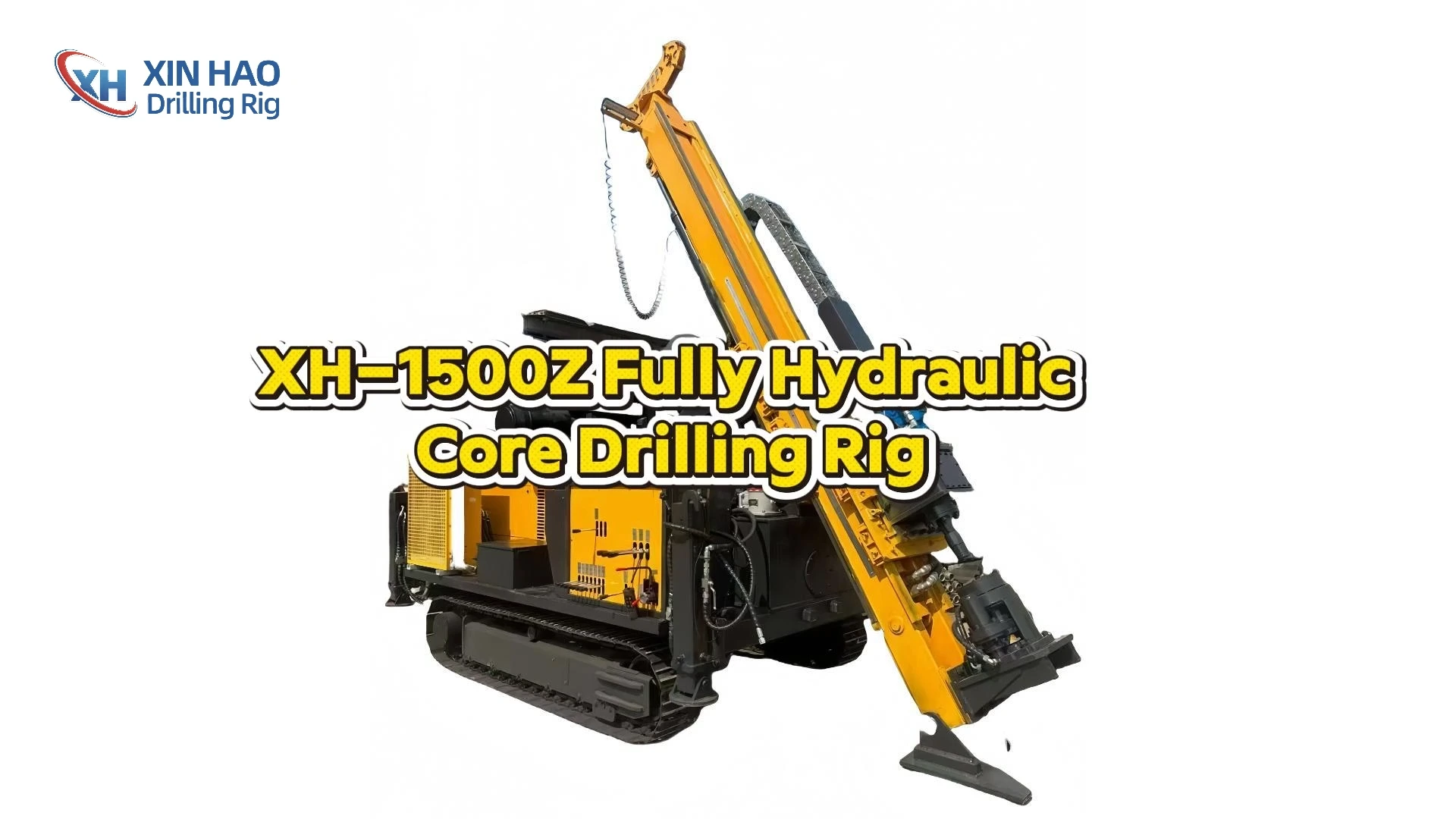

XH1500Z Customizable Hydraulic Core Drill Economical 1500m Operation
1500m Economical Customizable, Multifunctional hydraulic core drilling rig, coring drilling rig
5.0
Product Series:
XH-1500Z
Brand:
Xinhao
Customization:
Customized to Customer Needs
Application:
Designed specifically for diamond core drilling, it utilizes hydraulic power to obtain underground rock cores, soil, and other samples
Scenario:
It is primarily used for geological exploration, mineral surveys, hydrogeological surveys, engineering geological surveys, and other operations requiring internal rock formation information
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The 1800Z core drilling rig is a versatile model featuring a through-hole design, a powerful hydraulic chuck, and an automatic rod unloading function, capable of lifting 6 meters of drill rod at a time. It offers two precisely adjustable speeds (175-1100 rpm) and a maximum torque of 8000 Nm.
It features a unique 73-108mm round clamp with a self-compensation function to prevent drill runaway. The engine's dual filtration system is ideal for windy and sandy environments, while the hydraulic oil utilizes a dual heat dissipation system to protect against high temperatures. It can drill inclinations of 40-90 degrees, and its slideway utilizes a guide rail design for precise adjustment and accurate hole alignment.
Our advantage
Superior Power and Deep Drilling Capability
● The XH-1500Z hydraulic core drill rig has a drilling depth of 1500m. Its 165kW high-power engine and Rexroth A6VM200 motor, combined with a Kawasaki plunger pump, deliver efficient power transmission and a massive 4400Nm of torque.
● It easily handles complex geological challenges such as hard rock and gravel formations, making it ideal for applications requiring extreme drilling performance, such as metal mineral exploration and deep hydrological wells. Its 3.6m feed stroke and 6m drill rod single-lift design improve overall efficiency in deephole operations.
● It easily handles complex geological challenges such as hard rock and gravel formations, making it ideal for applications requiring extreme drilling performance, such as metal mineral exploration and deep hydrological wells. Its 3.6m feed stroke and 6m drill rod single-lift design improve overall efficiency in deephole operations.
Strong Adaptability to Harsh Environments
● Struggling with extreme operating conditions such as wind, sand, and high temperatures, the XH-1500Z core drill rig features a dual engine filtration system to effectively block dust intrusion and extend equipment life.
● A dual hydraulic oil cooling system prevents overheating caused by prolonged operation. The unique circular gripper with automatic compensation effectively prevents drill runaway accidents. Fully customizable options allow users to flexibly select core components such as the engine, mud pump, and motor based on project requirements and budget.
● A dual hydraulic oil cooling system prevents overheating caused by prolonged operation. The unique circular gripper with automatic compensation effectively prevents drill runaway accidents. Fully customizable options allow users to flexibly select core components such as the engine, mud pump, and motor based on project requirements and budget.
User-friendly Intelligent Control
● The XH-1500Z core drill rig completely changes the impression of traditional drilling rigs as complex. Equipped with an integrated control console and a comprehensive parameter monitoring system, it intuitively displays drilling data, significantly reducing operational difficulty and training costs.
● Precise speed adjustment with two speeds and manual adjustment (240-1000 rpm) allows operators to flexibly adjust the speed based on real-time rock formation changes. The integrated guide rail design effectively prevents deviations and ensures precise drilling trajectories, making it particularly suitable for projects requiring high hole position accuracy, such as directional drilling and urban engineering surveys.
● Precise speed adjustment with two speeds and manual adjustment (240-1000 rpm) allows operators to flexibly adjust the speed based on real-time rock formation changes. The integrated guide rail design effectively prevents deviations and ensures precise drilling trajectories, making it particularly suitable for projects requiring high hole position accuracy, such as directional drilling and urban engineering surveys.
Technical parameter
|
Diling depth |
1500m |
Maximumdilingrod iftinglength |
6m |
|
Engine powerated speed |
165kw/2200r/min |
Give in strength |
7T |
|
Main pump |
Kawasaki plunger pump |
Boosting power |
27T |
|
motor |
Rexroth A6VM200 |
Climbingability |
0-35 ° |
|
Power head output speed |
240-1000r/min |
mud pump |
BW240-3 |
|
Sped regulation method |
Second gear + manual adjustment |
Whole machine weight |
8.5T |
|
Maximum torque |
1460-4400nm |
External dimensions |
3800x2200x8500mm |
|
Go ahead withthe process |
3.6m |
Transportsize |
5650x2200x2650mm |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
