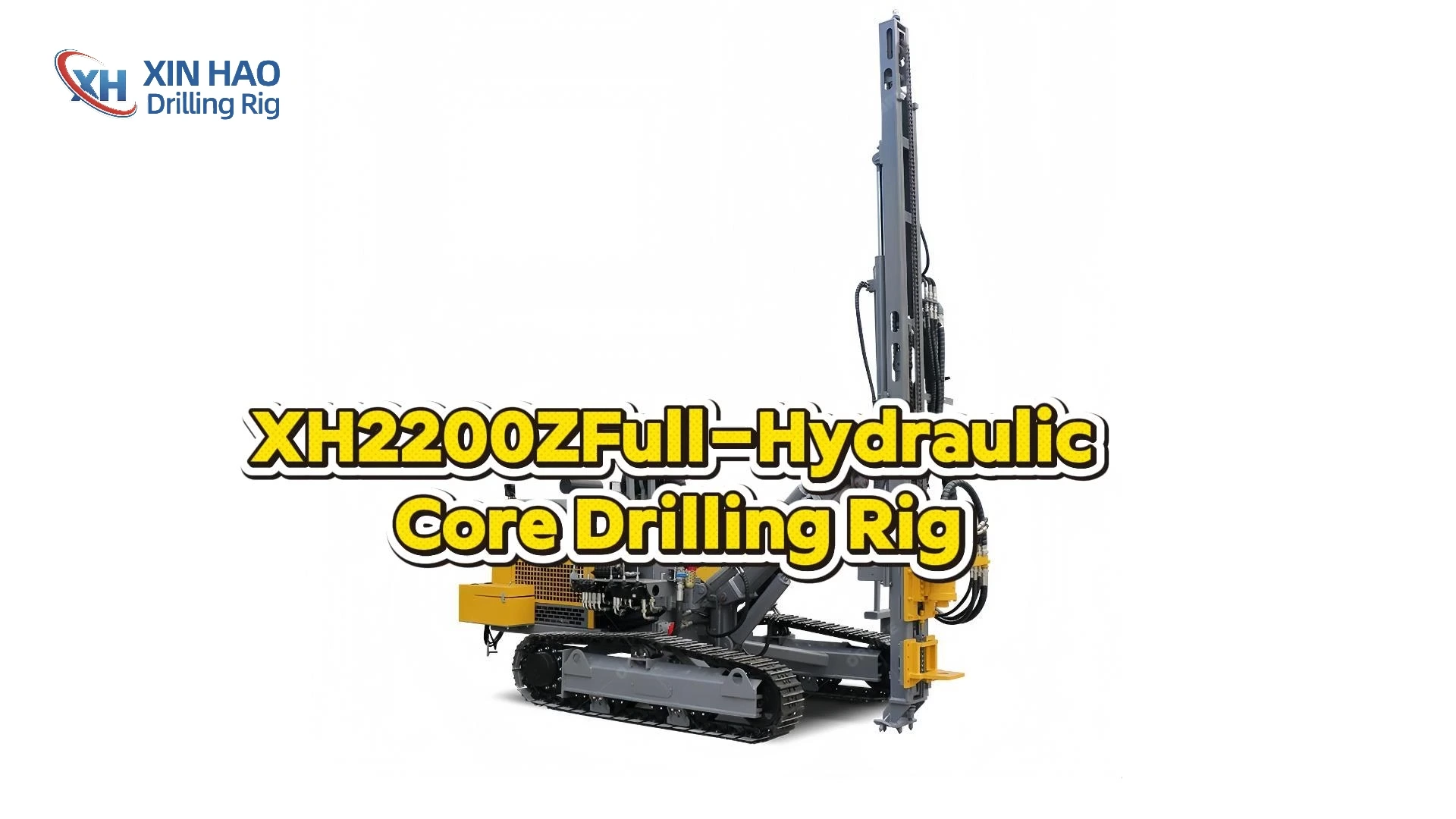

High Precision Core Drill Rig For 2200m Deep Hole & Water Well XH-2200Z
The XH2200 core drill rig is the top-of-the-line model in our 800-2200 series, offering the best configuration and highest performance
5.0
Product Series:
XH-2200Z
Brand:
XinHao
Customization:
Customized to Customer Needs
Application:
Designed specifically for diamond core drilling, it utilizes hydraulic power to obtain underground rock cores, soil, and other samples
Scenario:
It is primarily used for geological exploration, mineral surveys, hydrogeological surveys, engineering geological surveys, and other operations requiring internal rock formation information
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The XH2200 core drill rig is the top-of-the-line model in our 800-2200 series, offering the best configuration and highest performance. It boasts a maximum drilling depth of 2,200 meters. Designed specifically for obtaining complete core samples, it is widely used in geological exploration, mineral surveys, and engineering geology analysis.
It features two stepless speed adjustments (185-1,100 rpm), a maximum torque of 10,000 N·m, dual-stage filtration, and a dual cooling system, making it easily adaptable to harsh environments. Its guide rails ensure precise and stable drilling, ensuring efficient and reliable operation.
Our advantage
2200m Deephole Exploration Performance
● The XH-2200Z is the flagship model in the Xinhao core drill rig series, setting a new industry performance standard with its ultra-deep drilling depth of 2,200 meters and exceptional torque of 10,000 N·m.
● The 280kW high-power engine and Kawasaki plunger pump form a golden powertrain, enabling efficient and stable drilling in the hardest rock formations. The unique intelligent balanced pressure system automatically adjusts drilling pressure, effectively navigating complex formations and ensuring stable deephole operations and high core recovery rates, making it a reliable tool for high-end geological exploration and mineral surveys.
● The 280kW high-power engine and Kawasaki plunger pump form a golden powertrain, enabling efficient and stable drilling in the hardest rock formations. The unique intelligent balanced pressure system automatically adjusts drilling pressure, effectively navigating complex formations and ensuring stable deephole operations and high core recovery rates, making it a reliable tool for high-end geological exploration and mineral surveys.
Precision Operation System
● The XH-2200Z core drill rig features an integrated intelligent electro-hydraulic control system, enabling control of all drilling functions from a centralized console, real-time monitoring of operating status, and rapid and direct fault diagnosis.
● The equipment utilizes guide rails and hydraulic clamps, enabling precise drilling at multiple angles from 45° to 90°, effectively preventing deviations.
● The drill rod support and power head work together for fast, reliable response. Combined with a customized high-pressure mud pump, it fully adapts to complex working conditions, significantly improving drilling efficiency and hole quality.
● The equipment utilizes guide rails and hydraulic clamps, enabling precise drilling at multiple angles from 45° to 90°, effectively preventing deviations.
● The drill rod support and power head work together for fast, reliable response. Combined with a customized high-pressure mud pump, it fully adapts to complex working conditions, significantly improving drilling efficiency and hole quality.
Comprehensive Customization
● We offer in-depth ODM/OEM customization services, enabling customization from core configurations to detailed exterior details.
● Customers can select key components such as the engine and mud pump model based on their specific needs, and can also customize equipment dimensions, protective coatings, and even logos.
● Xinhao provides one-stop solutions from concept design and equipment customization to technical support, ensuring each drilling rig perfectly adapts to specific working environments and process requirements, creating maximum value for global exploration companies.
● Customers can select key components such as the engine and mud pump model based on their specific needs, and can also customize equipment dimensions, protective coatings, and even logos.
● Xinhao provides one-stop solutions from concept design and equipment customization to technical support, ensuring each drilling rig perfectly adapts to specific working environments and process requirements, creating maximum value for global exploration companies.
Technical parameter
|
Rig type |
XH2200Z |
Go ahead with the process |
3.6m |
|
Drilling depth |
2200m |
Maximum drilling rod lifting length |
6m |
|
Engine power/rated speed |
280kw/2200r/min |
Give in strength |
9T |
|
Main pump |
Kawasaki Piston Pump |
Boosting power |
33T |
|
Motor |
Rexroth A6VM250 |
Climbingability |
0-35° |
|
Power head output speed |
185-1000r/min |
Mud pump |
BW250-3 |
|
Speed regulation method |
2-speed + Manual Adjustment |
Whole machine weight |
11T |
|
Maximum torque |
2300-10000Nm |
External dimensions |
4000×2200×8500mm |
|
Transport size |
5650×2200×2650mm | ||
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
