XH1200Z High Capacity Core Drilling Rig For Mining To 1200m
1200m high power mining exploration, geological exploration drilling rigs
5.0
Product Series:
XH-1200Z
Brand:
Xinhao
Customization:
Customized to Customer Needs
Application:
Designed specifically for diamond core drilling, it utilizes hydraulic power to obtain underground rock cores, soil, and other samples
Scenario:
It is primarily used for geological exploration, mineral surveys, hydrogeological surveys, engineering geological surveys, and other operations requiring internal rock formation information
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction

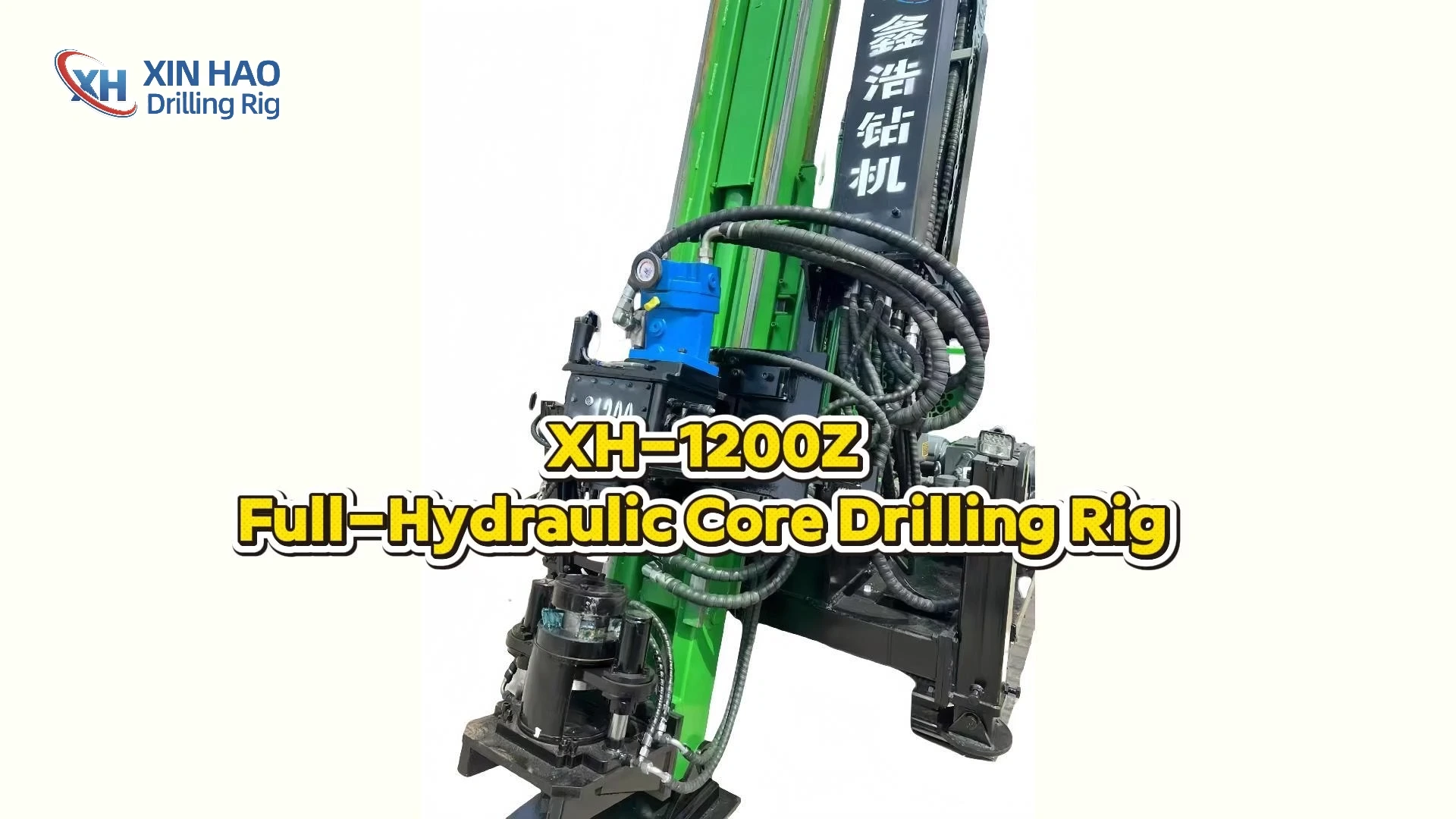

The XH-1200Z fFully hydraulic rope core drilling rig is a high-performance crawler-mounted deephole exploration rig designed for demanding core drilling and engineering drilling. It utilizes diamond small-diameter coring technology. Its 129kW high-power engine, Rexroth variable-speed motor, and our company's unique, patented gearbox ensure stable drilling and efficient footage in hard rock formations. A dual-cooling system for the hydraulic oil improves heat dissipation and provides reliable power for sustained, high-intensity operations, making it a premium solution for mineral resource exploration.
Our advantage
Powerful Drilling
● The XH-1200Z Hydraulic Core Drilling Rig features a 129kW high-power engine and a Kawasaki plunger pump, coupled with a Rexroth A6VM160 variable speed motor, delivering 3000Nm of torque, making it easy to drill in hard rock formations.
● A two-speed manual speed adjustment design covers the full speed range of 280-1100 rpm, ensuring smooth and efficient drilling.
● A 1200m drilling depth capability meets the demands of deephole exploration, while a 19T lifting force significantly reduces auxiliary time and improves operational continuity. Whether drilling diamond coring or engineering drilling, it ensures high footage speed and reliability.
● A two-speed manual speed adjustment design covers the full speed range of 280-1100 rpm, ensuring smooth and efficient drilling.
● A 1200m drilling depth capability meets the demands of deephole exploration, while a 19T lifting force significantly reduces auxiliary time and improves operational continuity. Whether drilling diamond coring or engineering drilling, it ensures high footage speed and reliability.
Energy Saving and Environmental Protection
● The XH-1200Z drill rig features an energy-saving hydraulic system and a low-emission engine, meeting global environmental standards and effectively reducing fuel consumption and operating costs.
● Dual-cooling hydraulic oil enhances heat dissipation and extends the life of core components. Users can choose between diesel and electric powertrain options. If environmental compliance and cost-effectiveness are paramount, this 1200m core drill rig is the ideal choice for your drilling projects.
● Dual-cooling hydraulic oil enhances heat dissipation and extends the life of core components. Users can choose between diesel and electric powertrain options. If environmental compliance and cost-effectiveness are paramount, this 1200m core drill rig is the ideal choice for your drilling projects.
Flexible Operation
For complex drilling conditions, the 1200m Hydraulic Core Drilling Rig prioritizes ease of operation and safety. Our patented gearbox enables stepless speed regulation, and the gripper features an automatic compensation function to effectively prevent drill runaway accidents. Optional accessories such as foam pumps, mud pumps, generator sets, and automatic rod changers can be customized according to project requirements. Full, design, and sample customization are supported.
Technical parameter
|
Diling depth |
1200m |
Maximum drilling rod lifting length |
2/3m |
|
Engine power/rated speed |
129kw/2200r/min |
Give in strength |
5T |
|
Main pump |
Kawasaki plunger pump |
Boosting power |
19T |
|
motor |
Rexroth A6VM160 |
Climbing ability |
0-35° |
|
Power head output speed |
280-1100r/min |
mud pump |
Elephant 150-3/BW160-3 |
|
Sped regulation method |
Second gear + manual adjustment |
Whole machine weight |
6.5T |
|
Maximum torque |
3000nm |
External dimensions |
3600x2100x7000(8000)mm |
|
Go ahead with the process |
2.4m/3.4m |
Transport size |
5450x(4700)x2100x5500mm |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
