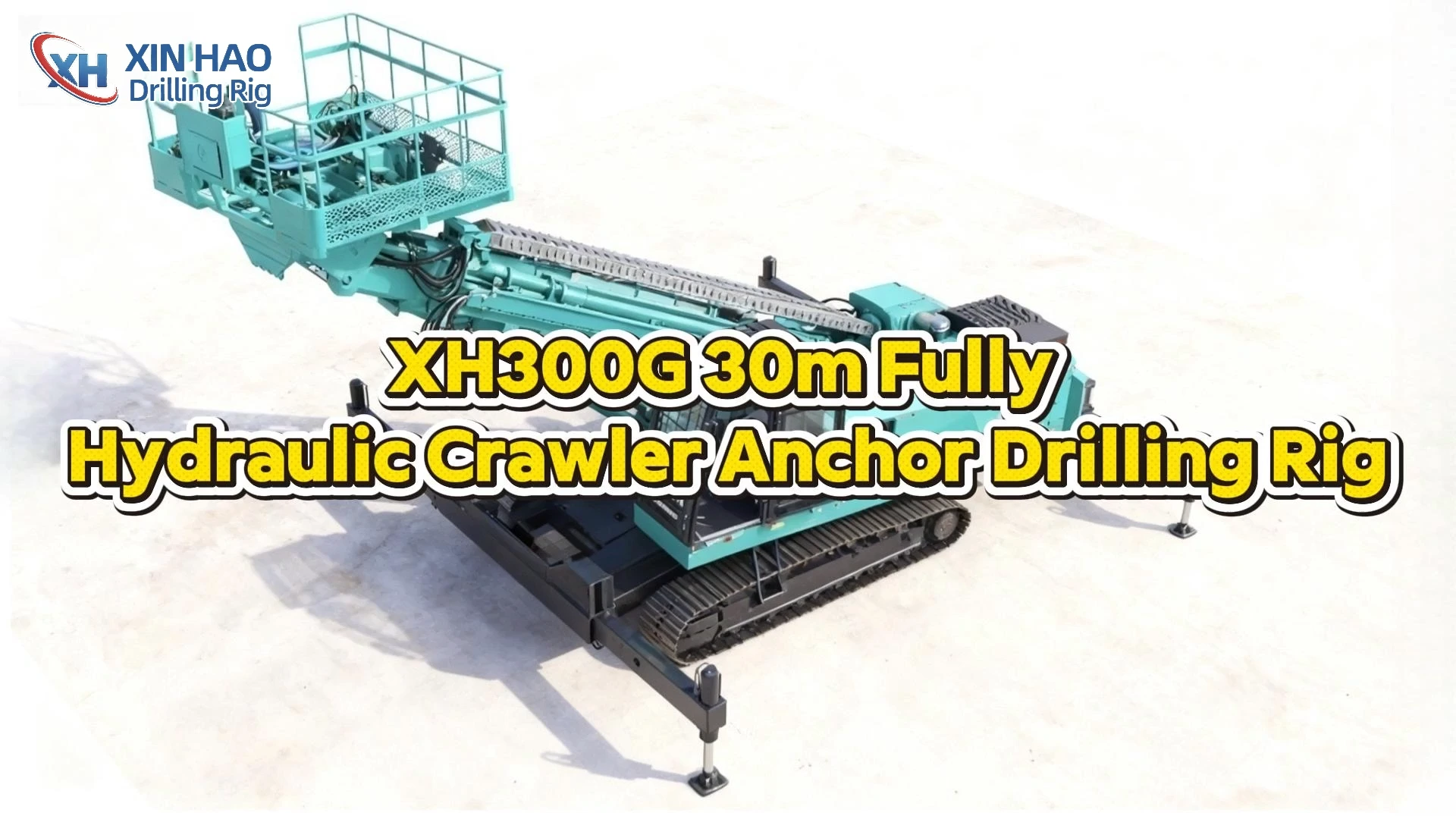

XH300G Tracked Anchor Drill For Slope Stabilization To 30m
High-Lift Anchor, High-Altitude Mountain Tracked Rotary Slope Protection Anchor Bolting Horizontal Drilling Rig.
5.0
Product Series:
XH300G
Brand:
XinHao
Customization:
Customized according to customer requirements
Application:
Used for drilling anchoring holes in slopes or rock and soil, and installing components such as anchor rods for reinforcement and protection to prevent landslides or collapses.
Scenario:
Suitable for slope support and reinforcement construction in geological disaster management areas such as highways, railways, water conservancy dams, mine dumps, and building foundations.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The XH300G fully hydraulic tracked anchor drilling rig is a heavy-duty solution designed to overcome extreme conditions such as steep slopes exceeding 30 meters and large-scale mine management. It precisely addresses three core pain points of traditional equipment in high-altitude operations: insufficient lifting capacity, inadequate drilling torque in hard rock, and weak lifting power for large-diameter anchor cables.
It can easily and accurately implant 300mm diameter anchor cables into 50-meter deep holes, making it a reliable partner for tackling the most challenging slope reinforcement tasks.
Our advantage
Powerful Drilling Power and High Efficiency
● The XH300 Anchor Drilling Rig is equipped with a fully hydraulic dual-motor drive system, providing an impressive 9000 Nm of torque. It delivers stable and continuous power output in fractured strata and hard rock formations, preventing stuck drill bits and ensuring high construction efficiency.
● When used with casing drilling tools, it enables simultaneous casing wall protection, allowing for continuous operation from drilling start to finish in loose strata, effectively eliminating the risk of borehole collapse.
● When used with casing drilling tools, it enables simultaneous casing wall protection, allowing for continuous operation from drilling start to finish in loose strata, effectively eliminating the risk of borehole collapse.
Wide Operating Range and High Flexibility
● Facing rugged construction sites, the XH300 Gancher Drilling Rig's four-section double-arm drill boom structure and 4200mm ultra-long carriage travel allow for flexible positioning of the drill rod within a 30-meter lifting height across a wide range and at multiple angles.
● It can cover a wide working surface without frequent movement, easily handling various demanding drilling angle requirements. Even on extremely steep and uneven slopes, it can quickly locate the hole and begin operations.
● It can cover a wide working surface without frequent movement, easily handling various demanding drilling angle requirements. Even on extremely steep and uneven slopes, it can quickly locate the hole and begin operations.
Construction Safety and Environmental Compliance
● In today's increasingly stringent environmental regulations, the XH300G takes these considerations into account. The optional fully hydraulic dry/wet dust collection system boasts a dust collection efficiency exceeding 95%, ensuring full compliance with environmental regulations during construction in sensitive areas such as urban areas and scenic spots, protecting the health of workers and the surrounding environment.
● With a 35-ton counterweight and widened tracks, the equipment remains stable on steep slopes, increasing its rollover resistance by 30%, making construction in complex terrain safer and more efficient.
● With a 35-ton counterweight and widened tracks, the equipment remains stable on steep slopes, increasing its rollover resistance by 30%, making construction in complex terrain safer and more efficient.
Technical parameter
|
Model |
XH300G |
Lifting Capacity |
8t |
|
Drilling Diameter |
90-300mm |
Rotational Speed |
0-120rpm |
|
Drilling Depth |
50m |
Rotational Torque |
4000-9000Nm |
|
Adaptable Rock Hardness |
f=6-20 |
Travel Speed |
2Km/h |
|
Working Air Pressure |
0.7-2.5MPa |
Power |
Weichai WP6G175E22 (Optional) |
|
Air Consumption |
11-30m³/min |
Dust Collector (Optional) |
Fully hydraulic dry dust collector/wet dust collector |
|
Slide Frame Stroke |
4200mm |
Drill Boom Type |
Four-Section Double Boom |
|
Rod Changing Length |
3m |
Overall Dimension (L×W×H) |
14500x3000x3300mm |
|
Lifting Height |
30m |
Overall Weight |
Approximately 35t |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
