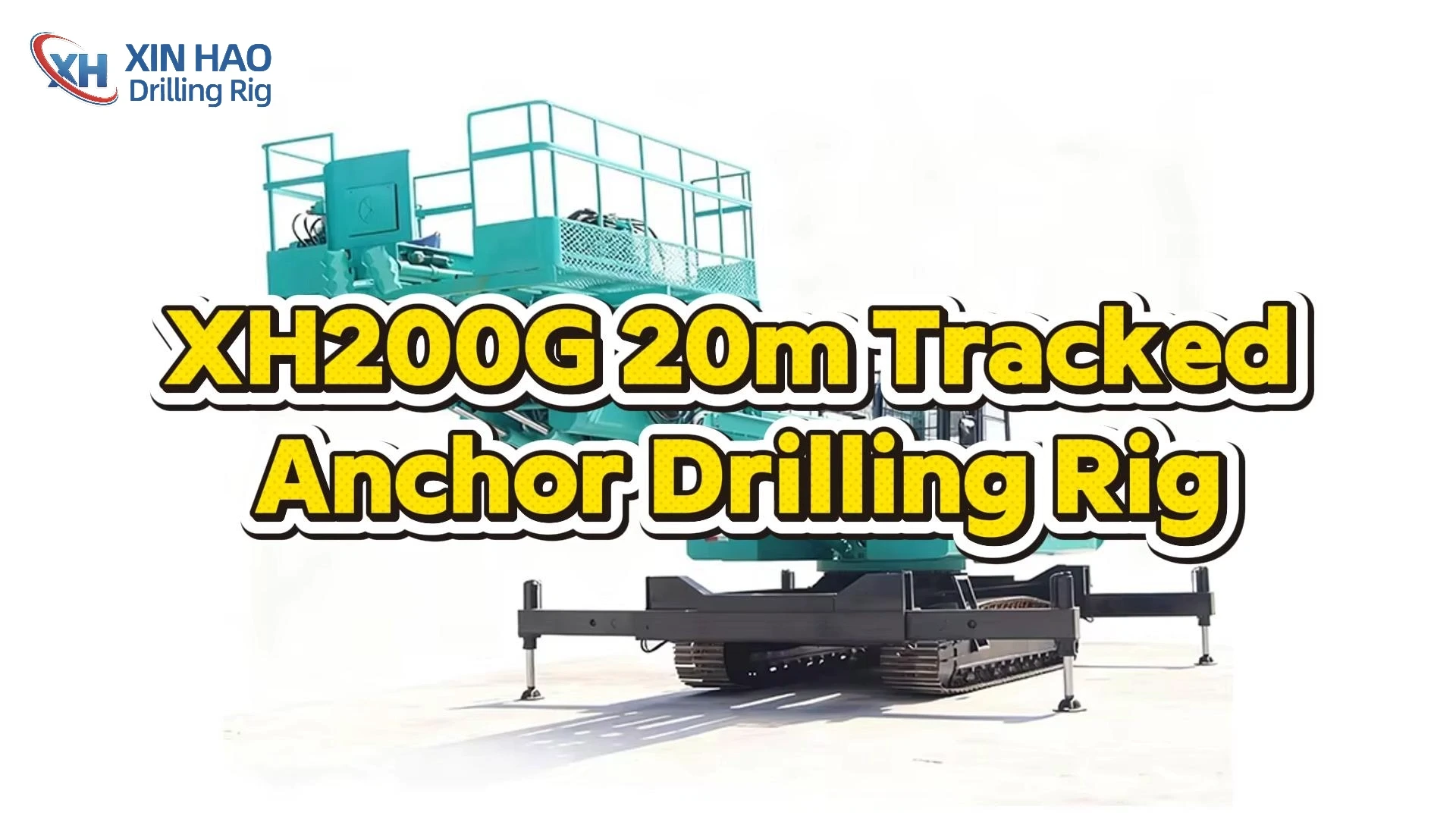

Fuel Efficient Tracked Anchor Drill Rig 20m Depth XH200G
The XH200G Anchor Drilling Rig overcomes the limitations of traditional anchoring equipment on slope conditions and rock strata.
5.0
Product Series:
XH200G
Brand:
XinHao
Customization:
Customized according to customer requirements
Application:
Used for drilling anchoring holes in slopes or rock and soil, and installing components such as anchor rods for reinforcement and protection to prevent landslides or collapses.
Scenario:
Suitable for slope support and reinforcement construction in geological disaster management areas such as highways, railways, water conservancy dams, mine dumps, and building foundations.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The tracked anchor drilling rig is a specialized piece of equipment developed for scenarios such as highway and railway slope reinforcement, foundation pit support, mine slope treatment, and water conservancy dam slope protection.
It fundamentally solves the three major pain points of traditional anchor drilling rigs: "inconvenient slope movement, difficulty in controlling drilling angle, and poor operational stability." It can achieve efficient and precise anchor bolt (cable) drilling and anchoring operations on slopes up to 25°, and is suitable for various geotechnical conditions (moderately weathered rock, strongly weathered rock, and gravelly soil).
Our advantage
Versatile Adaptability to Complex Terrain
● The XH200G Anchor Drilling Rig overcomes the limitations of traditional anchoring equipment on slope conditions and rock strata. Its three-section twin-arm drill boom, combined with a 4200mm carriage travel, allows for a 20-meter lifting height adjustment on 25° slopes, precisely positioning the drilling angle.
● The optional integrated jet grouting module on the tracked chassis enables integrated anchoring and grouting operations, reducing equipment scheduling time and improving overall project efficiency by over 30%.
● The optional integrated jet grouting module on the tracked chassis enables integrated anchoring and grouting operations, reducing equipment scheduling time and improving overall project efficiency by over 30%.
Intelligent Power System
● Standard configuration includes a Yuchai brand low-fuel-consumption engine, offering fuel efficiency, environmental friendliness, long-lasting performance, and stable power output, enabling continuous deep-hole drilling operations outdoors without external power.
● Wide operating air pressure range of 0.7-2.5MPa + high air volume of 11-30m³/min, with stepless air pressure adjustment. This allows for low air pressure to prevent borehole wall collapse in soft rock (f=6-12) and high air pressure for increased drilling speed in hard rock (f=13-20), improving drilling efficiency by 25% compared to similar models.
● Wide operating air pressure range of 0.7-2.5MPa + high air volume of 11-30m³/min, with stepless air pressure adjustment. This allows for low air pressure to prevent borehole wall collapse in soft rock (f=6-12) and high air pressure for increased drilling speed in hard rock (f=13-20), improving drilling efficiency by 25% compared to similar models.
Environmentally Friendly Construction and Human-Centered Design
● The 200G tracked anchor drilling rig can be equipped with a fully hydraulic dry/wet dust collection system, achieving a dust collection rate of ≥95%, meeting environmental protection requirements for projects around mines and urban areas, and preventing dust pollution from affecting the health of workers.
● A balanced center of gravity design and widened track structure ensure safety against rollover during steep slope operations.
● A 90-300mm wide diameter coverage area accommodates all anchoring requirements, from standard anchor bolts to large anchor cables.
● A balanced center of gravity design and widened track structure ensure safety against rollover during steep slope operations.
● A 90-300mm wide diameter coverage area accommodates all anchoring requirements, from standard anchor bolts to large anchor cables.
Technical parameter
|
Drilling Diameter |
90-300mm |
Lifting Capacity |
5t |
|
Drilling Depth |
50m |
Rotational Speed |
0-120rpm |
|
Adaptable Rock Hardness |
f=6-20 |
Rotational Torque |
3000-6000Nm |
|
Working Air Pressure |
0.7-2.5mpa |
Travel Speed |
2Km/h |
|
Air Consumption |
11-30m³/min |
Power |
Yuchai 6B125-T21 (Optional) |
|
Slide Frame Stroke |
4200mm |
Dust Collector (Optional) |
Full Hydraulic Dry Dust Collection, Wet Dust Collection |
|
Rod Changing Length |
3m |
Drill Boom Type |
Three-Section Double Boom |
|
Lifting Height |
20m |
Overall Dimension (L×W×H) |
14000×2800×3200mm |
|
Overall Weight |
Approximately 20t |
|
|
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
