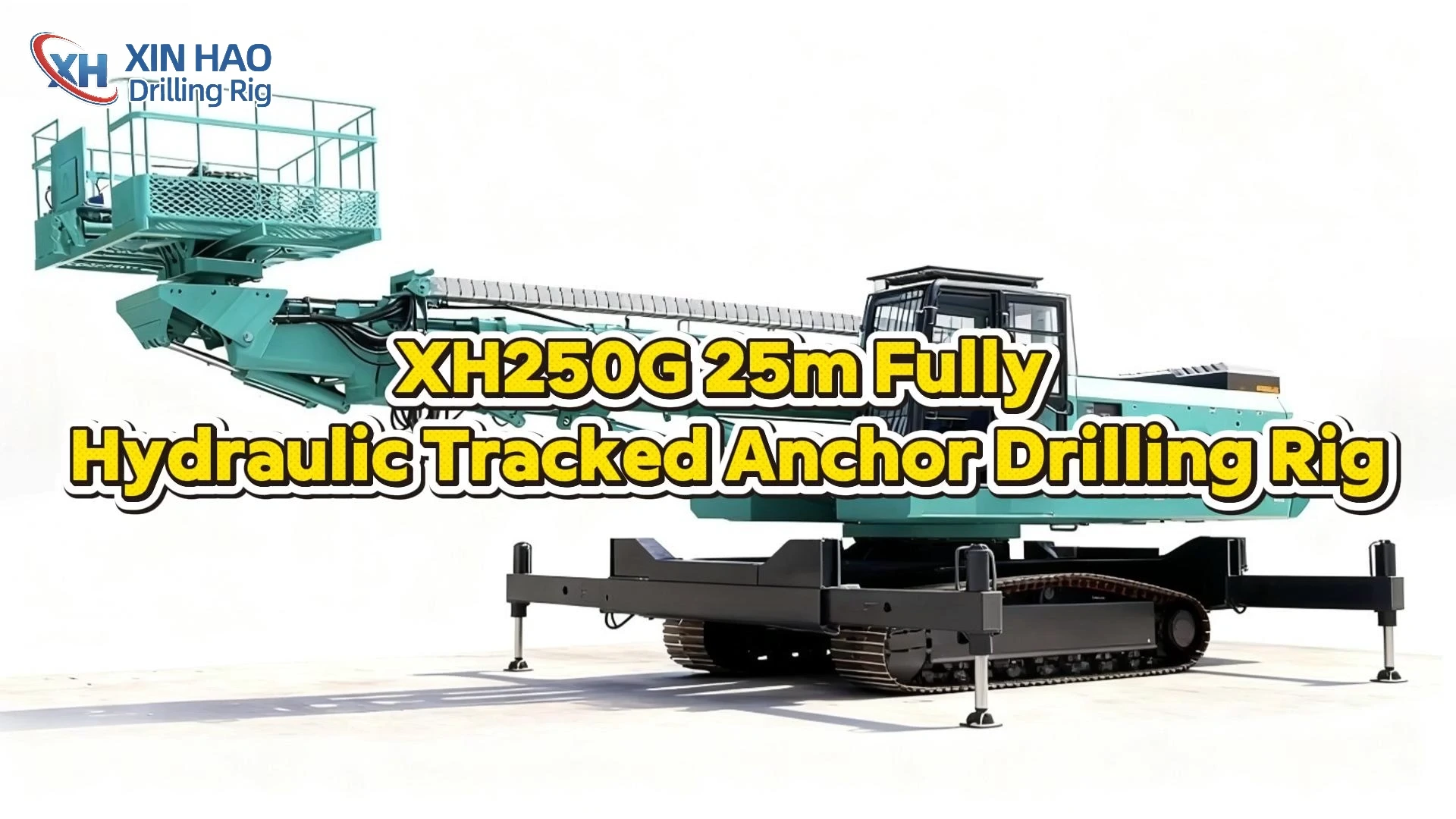

XH250G Fully Hydraulic Anchor Drill For Slope Reinforcement 25m
High-Efficiency Slope Reinforcement; Customization Supported.
5.0
Product Series:
XH250G
Brand:
XinHao
Customization:
Customized according to customer requirements
Application:
Used for drilling anchoring holes in slopes or rock and soil, and installing components such as anchor rods for reinforcement and protection to prevent landslides or collapses.
Scenario:
Suitable for slope support and reinforcement construction in geological disaster management areas such as highways, railways, water conservancy dams, mine dumps, and building foundations.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The XH250G hydraulic tracked anchor drilling rig is specifically designed for complex slope treatment and deep foundation pit support. Its core advantages include a 25-meter lifting height, a 50-meter deep drilling capacity, and a wide torque range of 4000-9000 Nm, comprehensively covering complex working conditions from moderately weathered rock to gravelly soil.
It is particularly suitable for engineering scenarios with stringent requirements for equipment adaptability, cost control, and environmental protection. The XH250 is not just a high-performance drilling rig, but also a flexible, economical, and sustainable construction solution.
Our advantage
Customized Solutions to Meet Diverse Engineering Needs
● We understand that every project faces unique budget and construction challenges. Therefore, we offer in-depth customization services. You can flexibly adjust equipment dimensions, paint custom logo colors, and select differentiated accessories (such as high-power dust collectors, specialized drilling tools, or additional hydraulic interfaces) according to the actual needs of your project.
● This "on-demand configuration" model ensures that every penny of your investment is precisely used for the project itself, avoiding resource waste and maximizing cost-effectiveness.
● This "on-demand configuration" model ensures that every penny of your investment is precisely used for the project itself, avoiding resource waste and maximizing cost-effectiveness.
Intelligent Construction for Effective Cost Control
● The XH250G Anchor Drilling Rig is equipped with an intelligent control system that automatically matches the optimal torque and speed based on rock hardness (f=6-20), avoiding power waste and equipment overload. Its low fuel consumption design and high durability structure greatly reduce long-term fuel and maintenance costs.
● A fully hydraulic dry/wet dust collector is available as an option to meet environmental protection requirements in dust-sensitive scenarios (such as slopes around residential areas).
● A fully hydraulic dry/wet dust collector is available as an option to meet environmental protection requirements in dust-sensitive scenarios (such as slopes around residential areas).
User-Friendly Design to Lower the Operation Barrier
● Even non-professional operators can quickly learn to operate it. The XH250GAnchor Drilling Rig features an integrated centralized control valve assembly and an intuitive human-machine interface, simplifying the complex anchoring process into a few simple commands. The combination of a four-section twin-arm drill boom and a 4200mm carriage makes hole positioning easier and significantly reduces auxiliary work time.
● We are committed to making powerful functions simple and easy to use, helping you effectively solve the problem of skilled operator shortages and ensuring smooth project progress.
● We are committed to making powerful functions simple and easy to use, helping you effectively solve the problem of skilled operator shortages and ensuring smooth project progress.
Technical parameter
|
Drilling Depth |
50m |
Rotational Speed |
0-150rpm |
|
Adaptable Rock Hardness |
f=6-20 |
Rotational Torque |
4000-9000Nm |
|
Working Air Pressure |
0.7-2.5MPa |
Travel Speed |
2Km/h |
|
Air Consumption |
11-30m³/min |
Power |
Weichai WP6G175E22 (Optional) |
|
Slide Frame Stroke |
4200mm |
Dust Collector (Optional) |
Full-Hydraulic Dry Dust Collection, Wet Dust Collection |
|
Rod Changing Length |
3m |
Drill Boom Type |
Four-Section Double Boom |
|
Lifting Height |
25m |
Overall Dimension (L×W×H) |
14500×3000×3000mm |
|
Lifting Capacity |
5t |
Overall Weight |
Approximately 30t |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
