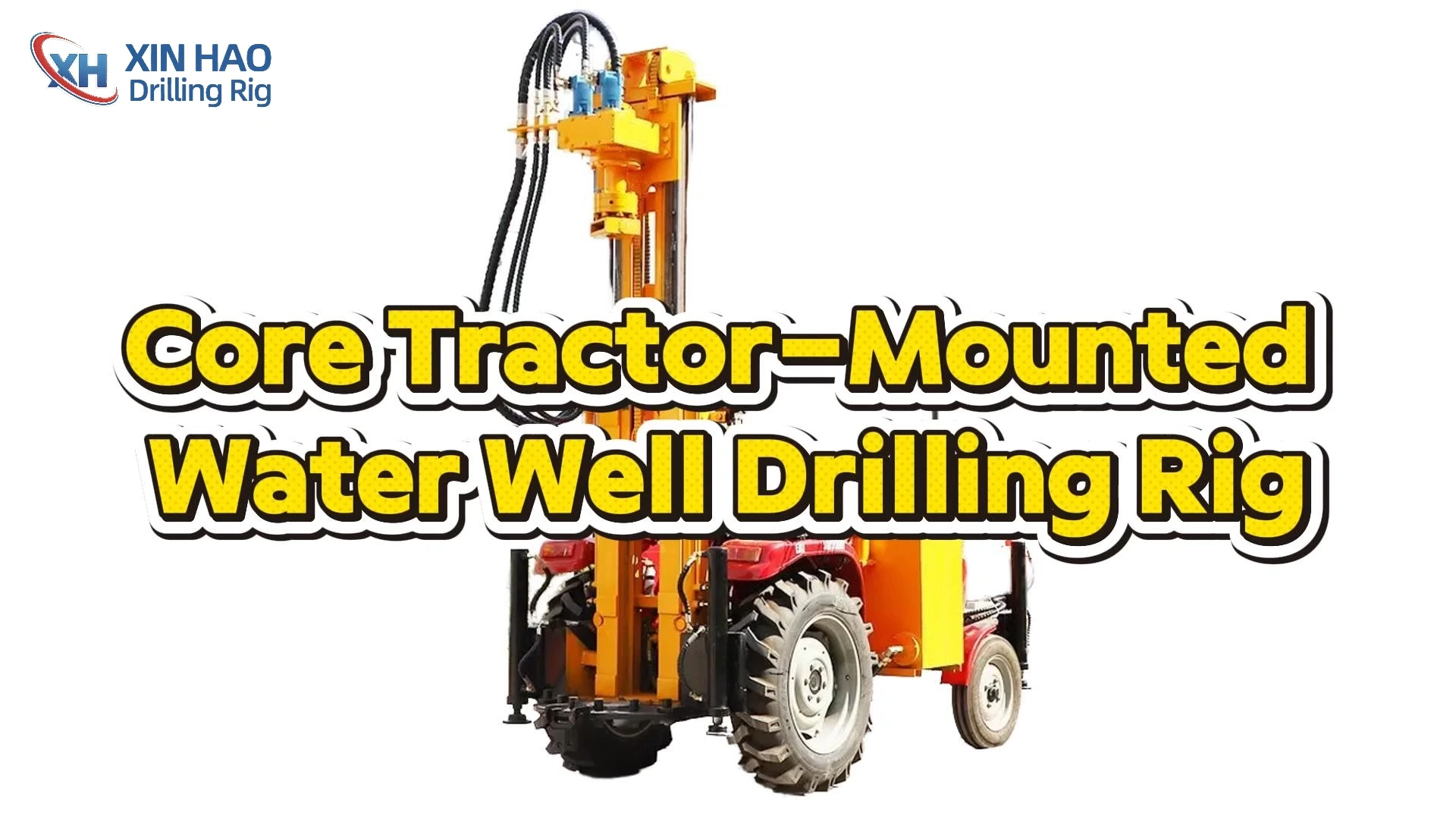

Tractor Mounted Core Drilling Rig Diesel Powered High Efficiency
Tractor mounted water well drilling rig, top quality water well drilling rig, diesel core drilling tractor water well drilling rig
5.0
Product Series:
XH tractor
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
Deep water wells, geothermal wells, irrigation wells, etc., especially suitable for water conservancy projects in mountainous areas and rocky strata
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
This tractor-style water well drill rig adopts advanced hydraulic technology and DTH (Down-The-Hole) hammer drilling technology. It is equipped with a high-torque hydraulic motor from a renowned manufacturer and large-bore hydraulic cylinders, delivering powerful performance capable of handling complex geological conditions such as mountainous areas and hard rock formations.
Combining the advantages of both a drilling rig and a tractor, it seamlessly integrates the tractor chassis with the drilling system. With high mobility and an integrated air compressor, it ensures more convenient and efficient construction.
Our advantage
Product Features
This 200-meter tractor-mounted drill rig features an integrated control platform for easy operation and reduced labor requirements. Its highly integrated design combines a tractor chassis with the drilling system, providing easy mobility and flexible operation. Equipped with a high-torque hydraulic motor, it easily handles complex geological conditions like hard rock and pebble-cobble layers. Additionally, an optional remote-control device supports full hydraulic control, enabling flexible and convenient operation while significantly improving drilling efficiency and adaptability.
Technical Parameter Advantages
The rig delivers strong performance with a large drilling diameter range of 140-235mm and a depth capacity of 200 meters. It ensures fast penetration rates to meet deep-hole drilling demands. With an operating air pressure of 1.7-3.5 MPa, air consumption of 17-31 m³/min, rotary torque of 3500-4800 N·m, and hoisting capacity of 15 tons, it guarantees efficient drilling and stable hole completion. The tractor mobility and 30° climbing ability make it widely adaptable, particularly suitable for water extraction in mountainous areas and rock formations.
High-Efficiency & Energy-Saving Design
The equipment is powered by a multi-cylinder diesel engine (from brands like Weichai or Yuchai) with a power output of 37 kW, providing reliable energy for the hydraulic system. The two-stage air filter and compressor intake design ensure low energy consumption and high power output. Integrated electromechanical control technology enables precise adjustment of speed, torque, and feed rate, reducing energy waste. Supporting multiple drilling processes, it significantly enhances operational economy and environmental adaptability.
Water well drilling rig series accessories
● Mud pump
● Air compressor
● Drill pipe
● Drilling bit
● Cone bit
● Latent hole impactor
● Air hose
Technical parameter
|
Drilling diameter |
140-235 |
Rotation torque(N.M) |
3500-4800 |
|
Drilling depth (m) |
200 |
Rig lifting force (T) |
15 |
|
Drill frame stroke (m) |
1.9 |
Diesel engine power(Kw) |
37 |
|
Drill pipe diameter (mm) |
76-89-102 |
Uphill angle (Max) |
30 |
|
Working pressure (Mpa) |
1.7-3.5 |
Size (M) |
3.4×1.6×2.4 |
|
Air consumption (m³/min) |
17-31 |
Weight (T) |
2.8 |
|
Slewing speed (rpm) |
45-70 |
|
|
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
