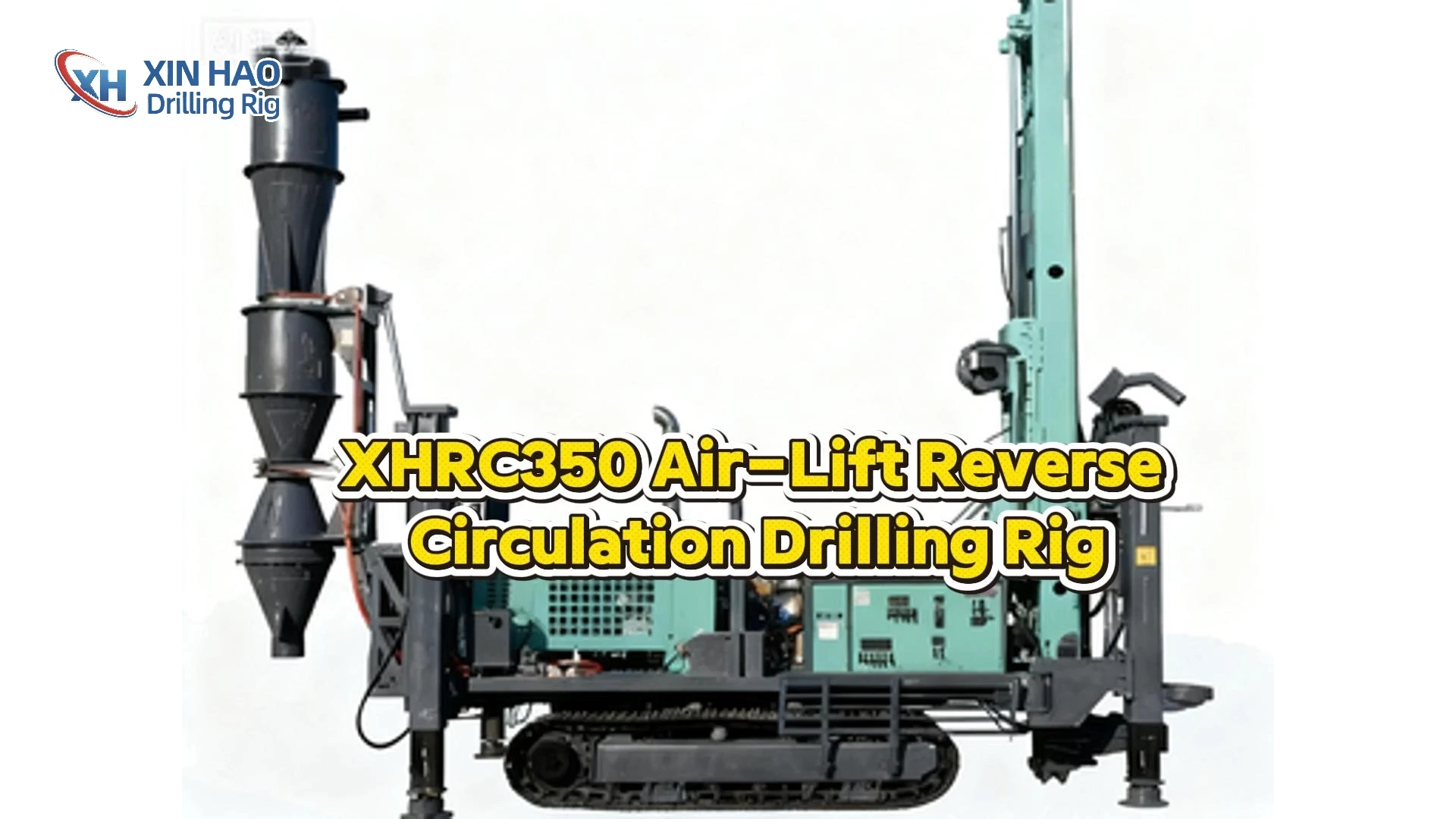

Intelligent Gas Lift Reverse Circulation Mining Drill Rig XHRC350
This rig is suitable for various formations and employs compressed air reverse circulation down-the-hole drilling technology, enabling efficient drilling under complex working conditions.
5.0
Product Series:
HRC350
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
Geological exploration drill for collecting underground rock cuttings samples
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The RC Reverse Circulation Drill Rig is a new-generation, high-efficiency, environmentally friendly, and multi-functional crawler drilling machine. With a maximum drilling depth of 350 meters, it utilizes dual-wall drill pipes. Cuttings are discharged through the inner pipe and uniformly collected via a cyclone collector, facilitating sample analysis for geological exploration departments.
This rig is suitable for various formations and employs compressed air reverse circulation down-the-hole drilling technology, enabling efficient drilling under complex working conditions. Operations such as mast lifting and compensation, drill pipe handling, rotary feed, leg adjustment, winch operation, and machine travel are all centrally controlled by a hydraulic system, significantly reducing labor intensity while improving construction efficiency and project quality.
Our advantage
Eco-Friendly Design
● Equipped with a low-emission engine compliant with international emission standards, effectively controlling exhaust emissions.
● Multi-layer noise reduction technology ensures operational noise does not exceed 72 dB, greatly minimizing disturbance to the surrounding environment.
● Particularly suitable for use in urban areas, ecologically sensitive zones, and other locations with strict noise and emission requirements, supporting green construction and enabling environmentally friendly operations.
● Multi-layer noise reduction technology ensures operational noise does not exceed 72 dB, greatly minimizing disturbance to the surrounding environment.
● Particularly suitable for use in urban areas, ecologically sensitive zones, and other locations with strict noise and emission requirements, supporting green construction and enabling environmentally friendly operations.
Intelligent Energy-Saving Technology
● The XHRC350 Reverse Circulation Drill Rig integrates an intelligent control system and a fourth-generation load-sensing hydraulic system.
● Through dynamic power matching and optimized thermal management modules, the system reduces overall energy consumption by up to 15% and maintains hydraulic oil temperature rise at an industry-leading level, helping you lower operating costs and extend the service life of core components.
● Integrated intelligent control achieves industry-leading drilling efficiency (increasing operational efficiency by 20% compared to similar products).
● Through dynamic power matching and optimized thermal management modules, the system reduces overall energy consumption by up to 15% and maintains hydraulic oil temperature rise at an industry-leading level, helping you lower operating costs and extend the service life of core components.
● Integrated intelligent control achieves industry-leading drilling efficiency (increasing operational efficiency by 20% compared to similar products).
Exceptional Operational Efficiency & Adaptability
● Utilizes an air compressor for cuttings removal and can be matched with various impactors and bits to easily meet different borehole diameter requirements.
● Low failure rate and high output torque, combined with adjustable speed function, significantly enhance drilling efficiency.
● The hydraulic system is equipped with an independent cooler, ensuring continuous operation in high-temperature environments.
● A displaceable sliding frame further enhances operational rigidity and overall stability, while supporting optional reverse circulation, mud pumps, and other accessories to meet diverse construction needs.
● Low failure rate and high output torque, combined with adjustable speed function, significantly enhance drilling efficiency.
● The hydraulic system is equipped with an independent cooler, ensuring continuous operation in high-temperature environments.
● A displaceable sliding frame further enhances operational rigidity and overall stability, while supporting optional reverse circulation, mud pumps, and other accessories to meet diverse construction needs.
Product Details
● Diesel Engine
The rig is powered by a diesel engine, known for its stable performance and strong practicality, suitable for operation in any environment.
● Dual-Motor Drive Head
Features a dual-motor driven reverse circulation head. The RC reverse circulation head, located at the top or middle of the drill mast, is the core component that drives the rotation of the drill pipe. It replaces traditional rotary table systems, making the entire drilling process more stable and efficient.
● Battery Box
Enables quick engine starting
Improves starting efficiency
Facilitates automatic control
● Remote Controller
Remote start and stop
Drilling control: Controls power head rotation (forward/reverse), hoisting/lowering, and clamping/releasing drill pipes.
Product features
Cummins dieselen ne
Dual-motor drill head
Multistage gear pump
All parameter monitoring
Hydraulic pipe breakout wrench
Technical parameter
|
Rig Type |
XHRC350 |
Hydraulic Pumps |
100ml/r.16MPa |
|
Weight |
8000kg |
Hydraulic Cooling System |
/ |
|
Dimension (Transport) |
5900*2100*2500mm |
Mechanical Winch Capacity |
15kN |
|
Dimension (Working) |
4200*3000*6100mm |
Power Unit |
Weichai 6-cylinder engine: 129kW/2200rpm |
|
Drilling Depth |
350m |
Air Pressure |
1.7-3.5MPa |
|
The Hole Diameter |
105-400mm |
Air Consumption |
17-42m³/min |
|
Drill Pipe Diameter |
76/89/102mm |
Equipped with Hammer |
Medium and high pressure series |
|
Drill Head Lift Force |
260kN |
Mud Pump |
BW160/BW250 (Optional) |
|
Drill Head Feed Force |
130kN |
Crawler |
8t steel 400mm |
|
Rotary Speed RPM |
40-160rpm |
Crawler Climbing Angle |
25° |
|
Max. Torque |
10000N.m |
Crawler Walking Speed |
2-3km/h |
|
Drill Head Feed Stroke |
3300mm |
Note |
The product is continuously improved. If the above parameters change, please refer to the actual product. |
|
Drill Mast Slide Stroke |
800mm |
Optional Configuration for Reverse Circulation Drill Rig |
1.Generator 2.Mud Pump 3.Foam Pump 4.Centrifugal Pump 5.Splitters |
