Air Lift Reverse Circulation Drill Rig For Mining 500m XHRC500
For deep hole mining exploration is an intelligent energy-saving drilling solution with a drilling depth of 500m. It is suitable for core drilling RIGS and mining drilling RIGS.
5.0
Product Series:
HRC500
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
A geological exploration drilling rig used for collecting underground cuttings samples
Scenario:
Complex strata such as soil layer, sand layer, hard layer and pebble layer
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction

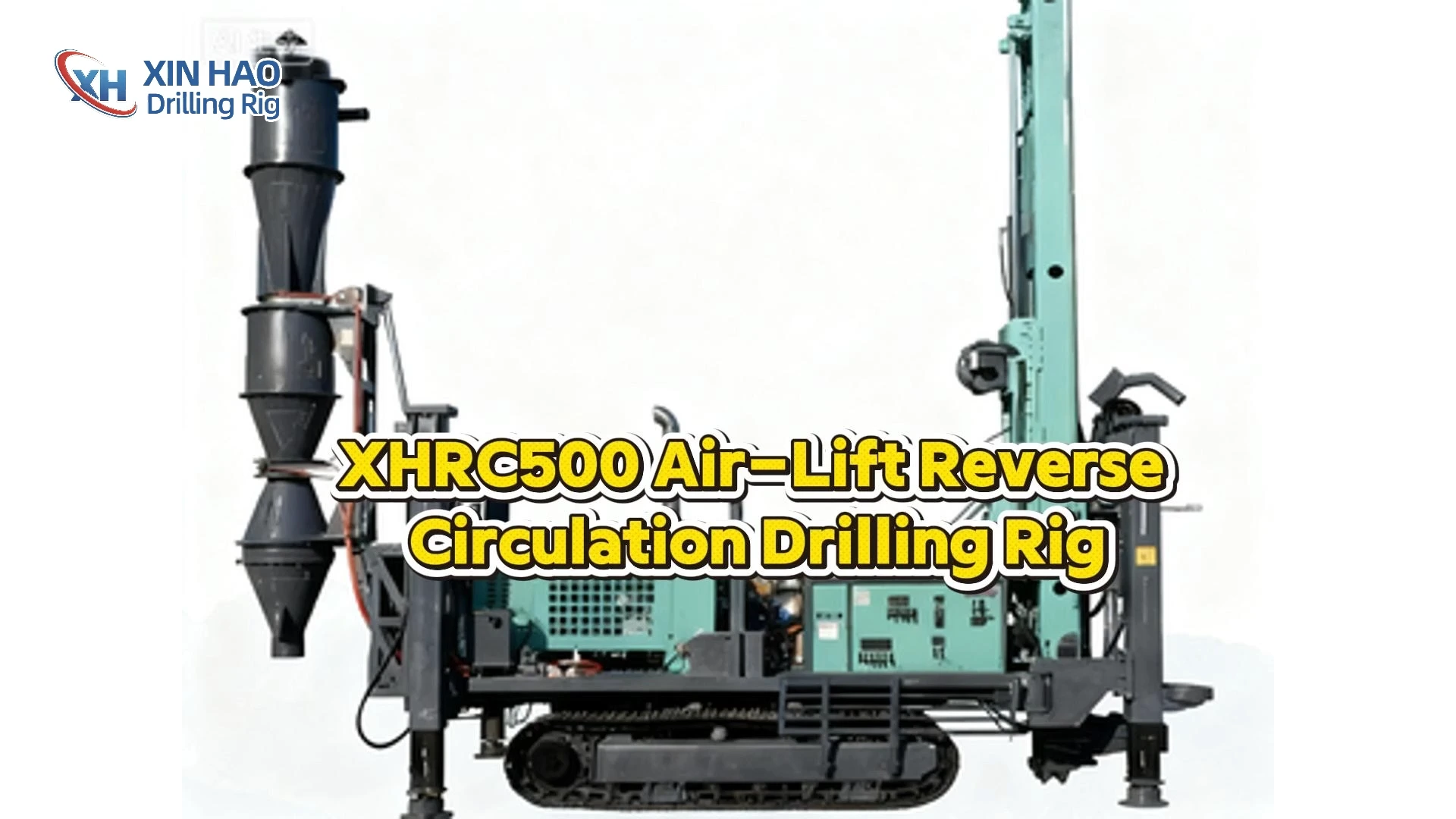

The XHRC500 Reverse Circulation Drill Rig is an innovative, high-efficiency, environmentally friendly, and multifunctional crawler drilling solution, engineered for exploration in complex formations such as soil layers, sand strata, hard rock, and cobble beds. With a maximum drilling depth of 500 meters, it utilizes dual-wall drill pipes and compressed air reverse circulation technology, enabling rapid cuttings recovery through a cyclone collection system to ensure accurate geological sampling.
Equipped with a fully integrated hydraulic control system, a unified operating platform, intelligent energy-saving technology, and low-noise, low-emission design, it is particularly suitable for urban and ecologically sensitive construction projects.
Our advantage
Extensive Drilling Depth & Wide Applicability
● Designed to tackle diverse and complex formations, the XHRC500 combines a high-torque power unit with a robust full hydraulic system, delivering a maximum rotary torque of 12,000 N·m and a power head lifting force of 300 kN.
● Automated drill pipe handling and a mast compensation system enable rapid rod connection/disconnection and maintain drilling stability, effectively reducing downtime and improving hole accuracy.
● Compatible with various DTH hammers and bits for hole diameters ranging from 105–400 mm, it ensures continuous and efficient performance even in demanding conditions, helping you complete projects faster and more precisely.
● Automated drill pipe handling and a mast compensation system enable rapid rod connection/disconnection and maintain drilling stability, effectively reducing downtime and improving hole accuracy.
● Compatible with various DTH hammers and bits for hole diameters ranging from 105–400 mm, it ensures continuous and efficient performance even in demanding conditions, helping you complete projects faster and more precisely.
Comprehensive Drilling Solutions
● Built with key components from leading domestic brands and a modular design, the rig ensures stable performance under extreme conditions and offers versatile adaptability, providing you with a reliable drilling solution.
● Core components such as hydraulic pump units, drive motors, and crawler reduction mechanisms are globally sourced. With a crawler climbing ability of 25° and optional air compressors, impactors, and mud pumps, it easily meets diverse needs including mineral exploration and water well drilling.
● An independent hydraulic oil cooler and a rigid mast structure further ensure continuous operation in high-temperature environments, assisting global users in efficiently accomplishing various drilling tasks.
● Core components such as hydraulic pump units, drive motors, and crawler reduction mechanisms are globally sourced. With a crawler climbing ability of 25° and optional air compressors, impactors, and mud pumps, it easily meets diverse needs including mineral exploration and water well drilling.
● An independent hydraulic oil cooler and a rigid mast structure further ensure continuous operation in high-temperature environments, assisting global users in efficiently accomplishing various drilling tasks.
Eco-Friendly & Intelligent Energy-Saving Technology
● The XHRC500 supports sustainable operations, incorporating low-emission engines (from renowned brands like Cummins and Weichai) and multi-layer noise reduction technology, with operational noise ≤72 dB, meeting stringent urban environmental standards.
● Its fourth-generation load-sensing hydraulic system, featuring dynamic power matching and optimized thermal management modules, reduces energy consumption by 15% and maintains low system temperature rise during prolonged operation.
● A highly efficient air pre-filter system effectively removes dust from intake air, is easy to clean and maintain, and reduces engine wear, effectively saving operational costs. It is an intelligent choice for projects in noise and emission-sensitive areas.
● Its fourth-generation load-sensing hydraulic system, featuring dynamic power matching and optimized thermal management modules, reduces energy consumption by 15% and maintains low system temperature rise during prolonged operation.
● A highly efficient air pre-filter system effectively removes dust from intake air, is easy to clean and maintain, and reduces engine wear, effectively saving operational costs. It is an intelligent choice for projects in noise and emission-sensitive areas.
Product Details
● Diesel Engine
The rig is powered by a diesel engine, recognized for its reliable performance and strong practicality, suitable for operation in any environment.
● Dual-Motor Drive Head
Equipped with a dual-motor driven reverse circulation head. The RC reverse circulation head, positioned at the top or middle of the drill mast, serves as the core component driving drill pipe rotation. It replaces traditional rotary table systems, making the entire drilling process more stable and efficient.
● Battery Box
Enables quick engine starting
Improves starting efficiency
Facilitates automatic control
● Remote Controller
Remote start and stop functions
Drilling control: Manages power head rotation (forward/reverse), hoisting/lowering, and clamping/releasing of drill pipes.
● Optional configurations for the reverse circulation drilling rig
1.Generator 2.Mud pump 3. Foam pump 4.Centrifugal pump 5.Splitters
Technical parameter
|
Rig type |
XHRC500 |
Dril mast slide stroke |
1000mm |
|
Weight |
12000kg |
Hydraulic pumps |
160ml/r.16MPa |
|
Dimension (transport) |
6300*2100*2500mm |
Hydraulic cooling system |
Water cooling |
|
Dimension(working) |
4500*3000*6800mm |
Mechanical winch capacity |
20kN |
|
Driling depth |
500m |
Power unit |
132kW/2200 Cummins 6-cylinder engine |
|
The hole diameter |
105-400 |
Air pressure |
1.7-3.5MPa |
|
Dill ipe diameter |
76/89/102/114 |
Air consumption |
17-42m³/min |
|
Power head boosting force |
300kN |
Equipped with hammer |
Medium and high pressure series |
|
Dril head lift force |
150kN |
Mud pump |
BW160/BW250(Optional) |
|
Rotary speed RPM |
40-160rpm |
Crawler |
12t steel 400mm |
|
Max.Torque |
12000N.m |
Crawler climbing angle |
25° |
|
Drillhead feed stroke |
3300mm |
Crawler walking speed |
2-3km/h |
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
