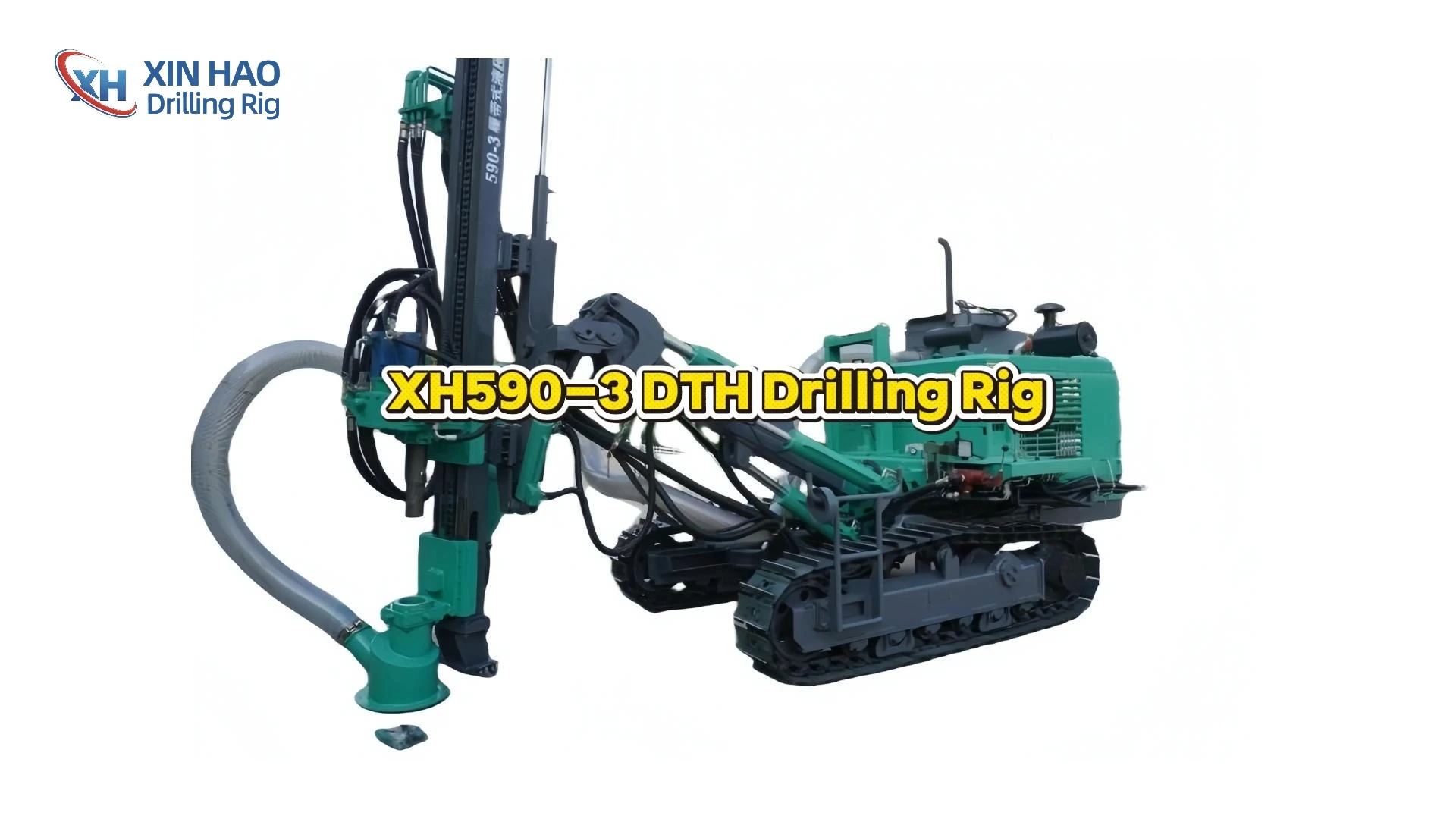

XH590-3 Crawler DTH Drill Rigs Blasting For Mining And Construction
Crawler drill rig, multi-purpose drill rig for blasting, mining, construction, water well geological exploration with high efficiency drilling rig
5.0
Product Series:
XH590-3
Brand:
Xinhao
Customization:
Customized according to customer needs
Application:
Efficiently complete blasthole and pre-splitting drilling operations
Scenario:
Designed specifically for quarries, open-pit coal mines, cement mines, and other applications
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The XH590-3 crawler-type DTH Drill Rigs are an efficient drilling solution designed for demanding working conditions. Equipped with a Yuchai four-cylinder engine, they feature a lightweight, durable structure, easy operation, and low maintenance.
Designed specifically for use in quarries, open-pit coal mines, and cement mines, they efficiently complete blasthole and pre-splitting drilling operations. Featuring fast drilling speeds, large diameters, and strong adaptability, they are widely used in the building materials, coal, metallurgy, and chemical industries, as well as in engineering fields such as construction, hydropower, transportation, and national defense. They are essential equipment for efficient mining and construction.
Our advantage
High Power, Low Operating Costs
● Equipped with a Yuchai four-cylinder engine, the DTH Drill Rigs offer low fuel consumption and stable power output, effectively reducing users' long-term operating costs. They also feature a simple design, a comprehensive range of parts, reasonable pricing, and easy maintenance and repair.
● Xinhao utilizes high-quality materials and advanced manufacturing and heat treatment processes, ensuring exceptional durability and stability in demanding working conditions.
● Xinhao utilizes high-quality materials and advanced manufacturing and heat treatment processes, ensuring exceptional durability and stability in demanding working conditions.
Powerful Operation and Reliable Dust Removal System
● The drill rig's slewing system utilizes dual motors, delivering high torque and a wide speed adjustment range. Combined with a reinforced lifting cylinder and chain, it provides enhanced lifting force and improved drilling efficiency.
● The equipment is equipped with a fully hydraulic dust collector, which delivers excellent dust removal, extending the machine's service life and providing a safe working environment for on-site operators, meeting environmentally friendly construction requirements.
● The equipment is equipped with a fully hydraulic dust collector, which delivers excellent dust removal, extending the machine's service life and providing a safe working environment for on-site operators, meeting environmentally friendly construction requirements.
Flexible Chassis and Intelligent Control System
● The oscillating crawler chassis offers high ground clearance and easy leveling, making it highly maneuverable in rugged mountainous terrain and complex working conditions.
● The centralized control valve assembly enables intuitive and simple operation, reducing learning curves and the risk of misoperation.
● The integrated, efficient heat dissipation and cooling system significantly improves hydraulic oil temperature control, effectively preventing unplanned downtime due to high temperatures and ensuring continuous operation and project progress.
● The centralized control valve assembly enables intuitive and simple operation, reducing learning curves and the risk of misoperation.
● The integrated, efficient heat dissipation and cooling system significantly improves hydraulic oil temperature control, effectively preventing unplanned downtime due to high temperatures and ensuring continuous operation and project progress.
Technical parameter
|
Rig type |
XH590-3 |
Max.rotation torque |
6000N.m |
|
Drilling depth |
34m |
Rotation speed |
0-120rpm |
|
Diling diameter |
φ90-φ180mm |
Walking speed |
2-4km/h |
|
Pipe length |
3m |
Grade ability |
30° |
|
Working pressure |
1.2-2.5Mpa |
Power |
77.3kW |
|
Rock hardness |
f=6-20 |
Dimension |
7050x2200x2150mm |
|
Feeding stroke |
4140mm |
Weight |
7100kg |
|
Max.horizontal driling height |
3400mm |
Dust collector (Optional) |
Hydraulic dry type dust collecting /wet type |
|
Optional configurations for down-the-hole drills |
1. Dust collector 2. Hydraulic winch 3. Air compressor | ||
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
