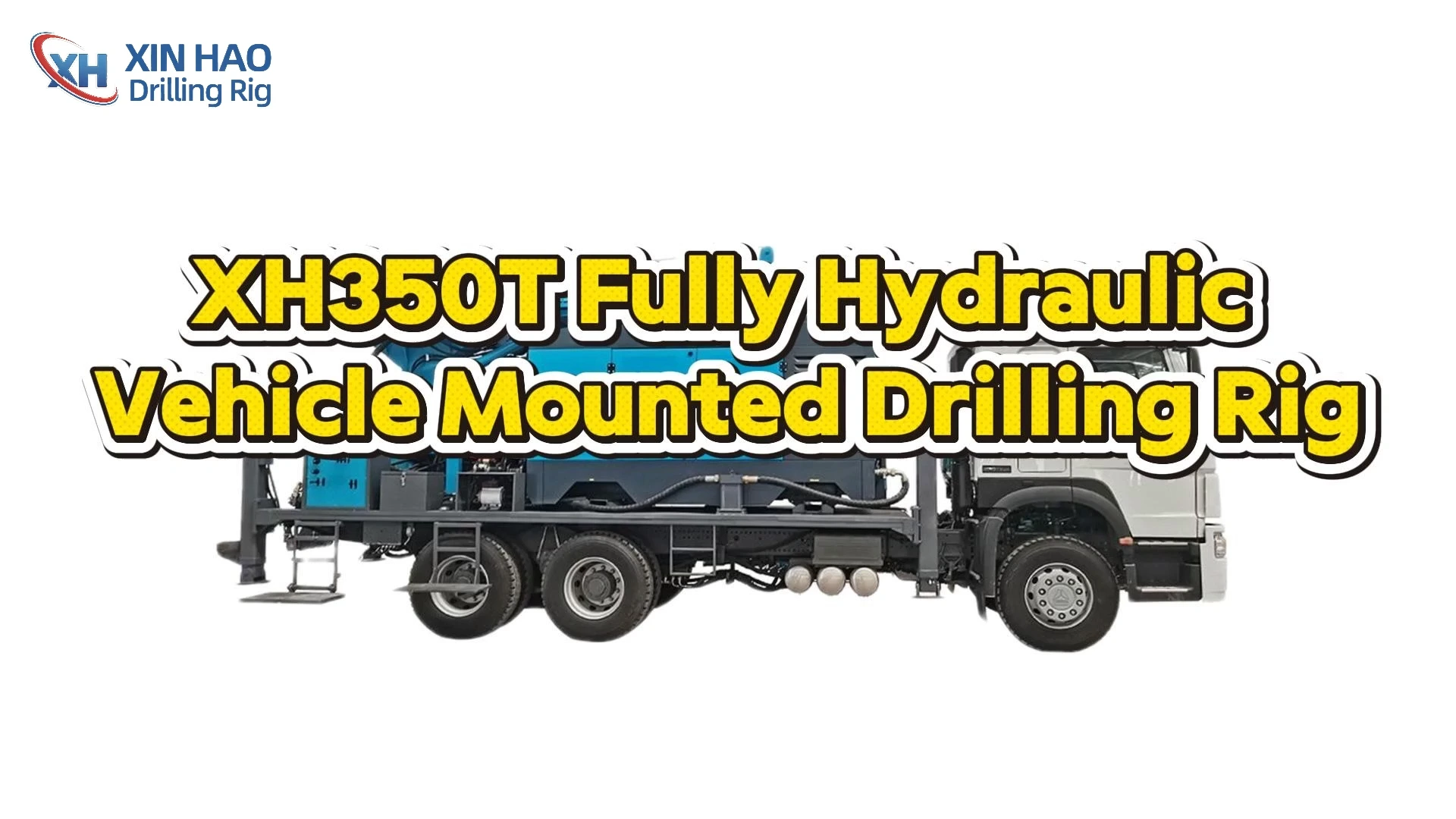

XH350T Fully Hydraulic Multi-functional Integrated Vehicle Mounted Drilling Rig
Upon customer requirements, an independent diesel engine can be installed for drilling power.
5.0
Product Series:
XH350T
Brand:
XinHao
Customization:
Customized to meet customer needs
Application:
Utilizing the mobility and load-bearing capacity of a specialized truck chassis, it enables medium-to-deep drilling operations, completing tasks such as water well drilling, geological exploration, and small-scale engineering drilling
Scenario:
Mainly used for foundation work in industrial and agricultural water wells, national defense building foundations, geological exploration, geothermal wells, etc.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The XH350T is a new, fully hydraulically driven, high-performance Vehicle Mounted Drilling Rig that integrates drilling, grouting, anchoring, and environmental protection functions. It is widely used in complex deep-hole drilling projects such as water wells, geothermal wells, monitoring wells, open-pit mining, anchor reinforcement, and national defense projects. Compared to traditional drilling rigs, the mud pump and air compressor are mounted on the same truck chassis, eliminating the need for additional equipment transportation and significantly improving on-site operational efficiency.
This drilling rig is equipped with a high-power hydraulic motor, hydraulic boom, DTH hammer drill, and high-flow mud pump, enabling mud drilling.
Upon customer requirements, an independent diesel engine can be installed for drilling power.
Our advantage
Versatile Geological Adaptability and High-Efficiency Operation Modes
● The XH350T Vehicle Mounted Drilling Rig features a modular configuration, enabling "one machine for multiple uses." Users can freely choose from mud circulation, air down-the-hole hammer, or combined drilling methods based on soil and rock conditions, easily handling various working conditions from soft soil to hard bedrock.
● Equipped with a high-flow mud pump and a high-efficiency air compressor, the equipment can drill to a depth of 390 meters, meeting the needs of deep holes such as water wells and geothermal boreholes.
● The heavy-duty truck chassis and multi-speed transmission system (10 forward gears + 2 reverse gears) ensure mobility in mountainous and muddy terrain, allowing for rapid relocation without auxiliary transport.
● Equipped with a high-flow mud pump and a high-efficiency air compressor, the equipment can drill to a depth of 390 meters, meeting the needs of deep holes such as water wells and geothermal boreholes.
● The heavy-duty truck chassis and multi-speed transmission system (10 forward gears + 2 reverse gears) ensure mobility in mountainous and muddy terrain, allowing for rapid relocation without auxiliary transport.
Customized Services on Demand
● We offer end-to-end customization, from chassis and engine to the cab. You can independently choose the brand, color, power, and operating mode according to project requirements to obtain the drilling solution best suited to the working conditions.
● We support targeted modifications based on your provided drawings. This "tailor-made" collaboration model ensures a high degree of compatibility between equipment and the construction scenario, while effectively controlling your budget.
● We support targeted modifications based on your provided drawings. This "tailor-made" collaboration model ensures a high degree of compatibility between equipment and the construction scenario, while effectively controlling your budget.
High Reliability
● The XH350T fully hydraulic Vehicle Mounted Drilling Rig uses independent engines for the chassis and drilling rig. Even if one fails, the other can continue working, avoiding a complete shutdown and ensuring project deadlines.
● It uses the most advanced composite drilling rig in China—a dual-cylinder chain lifting system with a powerful 22T lifting force.
● We promise that all our trucks are brand new, eliminating the risks associated with used chassis. They are powerful, have a high load-bearing capacity, and perform excellently in mountainous areas, muddy areas, bushy areas, and other harsh terrains.
● It uses the most advanced composite drilling rig in China—a dual-cylinder chain lifting system with a powerful 22T lifting force.
● We promise that all our trucks are brand new, eliminating the risks associated with used chassis. They are powerful, have a high load-bearing capacity, and perform excellently in mountainous areas, muddy areas, bushy areas, and other harsh terrains.
Technical parameter
|
Rig type |
XH350T |
Drill pipe length ( m ) |
3 |
|
Drilling depth |
34m |
Lifting force ( T ) |
22 |
|
Overall weight (T) |
25 |
Rotation speed ( rpm) |
45-120 |
|
Applicable hole diameter (mm) |
140-325 |
Rotation torque ( Nm ) |
6200-8500 |
|
Drilling depth ( m ) |
350 |
Vehicle |
HOWO 371HP |
|
One-time push length ( m ) |
3 |
Model |
ZZ2257N4857A |
|
Rig Engine Power Puissance |
92kW(123HP) |
truck engine |
WD615.47 Euro Ⅲ 276KW(371HP) |
|
Drill pipe diameter (mm) |
89,102 |
Walking speed ( km/h ) |
80 |
|
Drive form |
6×6 |
Transaxle Drive axle |
ST16 Double driving axle ST16 |
|
Fuel Tank |
400L |
Transfer case |
Type 2000 |
|
Cab |
HW76 cab, single sleeper, with air conditioning, double seat with locking structure seat belt, Mp3+USD entertainment system, manual lift. Cabine HW76, couchette simple, avec climatisation, siege double avec centre de securite a structure verrouillable, systeme de divertissement Mp3 + USD, ascenseur manuel. |
||
|
Tyre Specifications |
14.00R20 Wire Vacuum Tire 14.00R20 Steel Wire Vacuum Tire |
||
|
front axle |
STR Steering Belt Drive, STR brakes Entrainment par courroie de direction Drum freins a tambour |
||
|
Gearbox |
HW19710, 10 forward gears, 2 reverse gears HW19710, 10 vitesses avant, 2 vitesses arriere |
||
Note: The product is continuously improved. If the above parameters are changed, please refer to the actual product.
Our Services
End-to-End Project Support
With over 15 years of industry expertise, we provide comprehensive support throughout your project lifecycle — from equipment selection and production line customization to supply chain optimization and post-installation refinement.
Integrated Solutions & Training
We deliver complete construction methodologies and equipment operation training, alongside tailored solutions in cost budgeting, schedule acceleration, quality control, and safety management — ensuring projects are executed efficiently and reliably.
Responsive After-Sales System
Our service team offers full-cycle support, prioritizing rapid response, technical proficiency, and a client-focused attitude to keep your operations running smoothly.
Flexible Customization
Leveraging our adaptable production lines, we empower you to customize your rig — including mold design, drive type, component upgrades, housing material, exterior color, and branding.
Efficient Spare Parts Supply
We maintain a well-stocked parts warehouse to ensure the timely supply of critical wear parts, helping to minimize your equipment downtime and shorten maintenance cycles.
Global Logistics & Delivery
We ship worldwide by sea, land, or air, and handle complex processes such as customs clearance and final-mile delivery — so you receive your equipment seamlessly, anywhere.
